Titanium Metal Injection Molding Service
Titanium injection molding (MIM) is an advanced manufacturing technology capable of mass-producing complex, high-strength titanium parts. Partnering with Elimold, our experts will get involved early, asking the right questions, identifying challenges, and guiding you through every stage of the process. From initial concept to full-scale production, we work closely with you, utilizing the right MIM technologies, prototyping tools, and production strategies to quickly and efficiently meet your design, performance, and cost goals. Contact us now for a quote.
Professional Titanium Alloy Metal Injection Molding Manufacturer
Elimold specializes in providing customized titanium alloy metal injection molding (MIM) solutions for customers requiring titanium alloy components. We meticulously manage the entire manufacturing process to ensure exceptional precision and attention to detail. With state-of-the-art facilities and cutting-edge equipment, we are able to handle large-scale production while maintaining consistent quality and precision. Our team’s unwavering commitment to quality, innovation, and customer satisfaction has made us a trusted partner in the titanium alloy metal injection molding field. Leveraging industry expertise and advanced technology, we deliver titanium alloy metal parts that deliver superior performance, far exceeding expectations, while ensuring projects are completed on time.
Advanced Titanium Metal Injection Molding (MIM) Technology
We utilize advanced metal injection molding (MIM) technology to produce high-quality titanium alloy parts. Currently, very few companies employ MIM to produce precision titanium alloy parts. The MIM process is unique; Elimold has independently developed this technology through years of focused process research and improvement. Furthermore, we possess a detailed set of procedures for monitoring the MIM production process and production data, forming the basis for data collection and analysis. These controls are implemented in real time, ensuring that each part is manufactured correctly and that its dimensions and specifications are consistent.
Titanium MIM Parts Manufacturing Process
The following is the basic process flow of Elimold titanium metal injection molding, including mixing, injection, debinding, and sintering.
Designing
Mixing
Injecting
Debinding

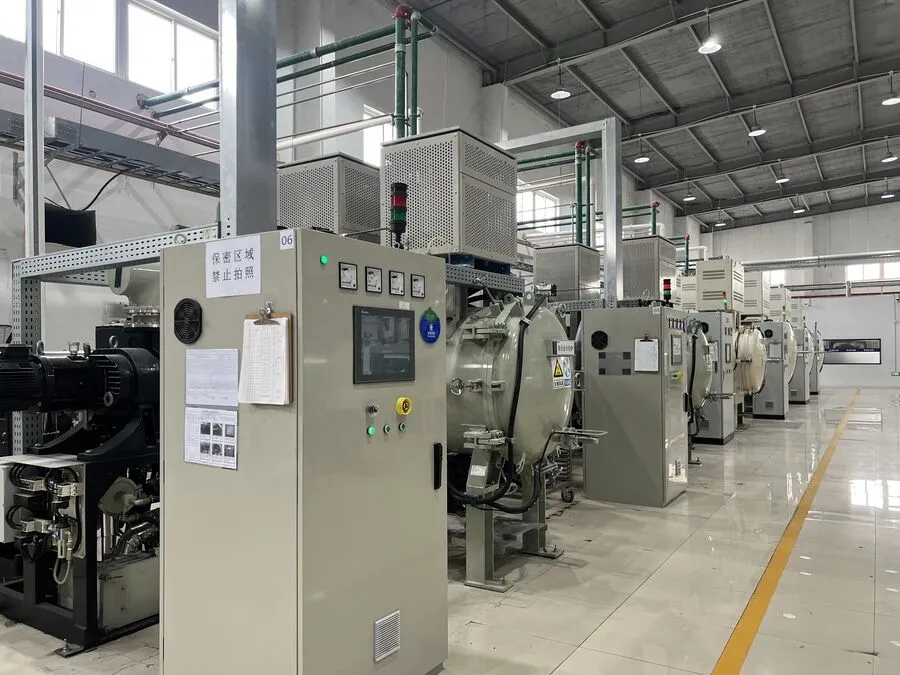

Sintering

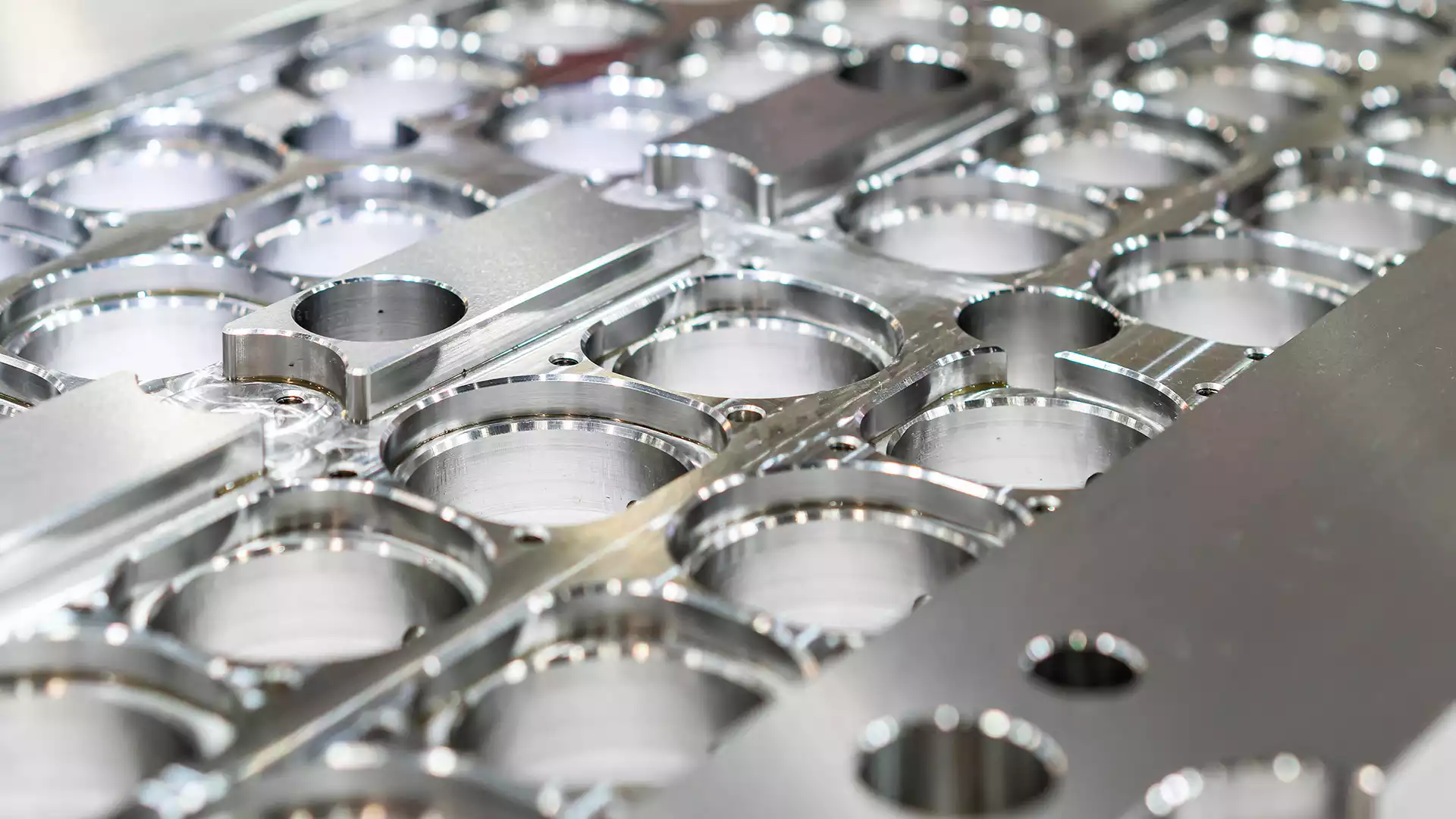

Secondary Operations
Our Titanium Alloy Injection Molding Capabilities
Our in-house factory can produce titanium alloy parts ranging in weight from 0.02 grams to 200 grams and in thickness from 0.04 inches to 0.5 inches. Our titanium alloy injection molding process achieves a particle density of over 99.5%. TiMIM components can be extremely fine, even down to the microscopic level, incorporating threads, scribing, microgrooving, and many other features required for modern electronics.
Furthermore, our near-net-shape process enables extremely short production cycles. The complete production cycle for a MIM part typically takes three to five days, including injection molding, debinding, sintering, and final inspection. We are committed to serving our customers with the best quality and price. For castings, part and mold design are also crucial.
Elimold's Advantages in Titanium Alloy Metal Injection Molding
Elimold has extensive experience in mass-producing high-strength, structurally complex titanium alloy parts, meeting a wide range of demanding application requirements. With advanced automated molding units, powerful high-temperature sintering capabilities, and a broad selection of raw materials, customers have complete freedom to design and manufacture high-strength, highly complex 3D titanium alloy metal injection molded components. Elimold’s metal injection molding (MIM) method fully leverages the advantages of this technology and introduces unconventional solutions to overcome its greatest limitations. Furthermore, titanium alloy metal injection molding requires a manufacturing partner with the equipment, expertise, and innovative spirit to break with convention.
Titanium Alloy Optional for MIM
Ti-6Al-4V (Grade 5)
The most widely used titanium alloy offers an excellent strength-to-weight ratio, corrosion resistance, fatigue strength, and high-temperature capability—an ideal general-purpose alloy.
Ti-6Al-7Nb (Grade 26)
Niobium addition improves corrosion resistance compared to Ti-6Al-4V. They are used for biomedical implants and aerospace components requiring high biocompatibility.
Ti-5Al-2.5Fe (Grade 38)
Iron addition provides better machinability and enforceability. They are used where machining/fabrication of MIM parts is required—an excellent combination of strength and toughness.
Ti-3Al-2.5V (Grade 9)
Lower aluminum and vanadium content gives superior weldability. Suitable for chemical processing applications requiring corrosion resistance and weldability.
Ti-15V-3Cr-3Al-3Sn
A high-strength titanium alloy used for fasteners and compressor parts in aerospace applications. Provides excellent creep resistance.
Ti-10V-2Fe-3Al (Grade 20)
Good balance of strength, flexibility, and oxidation resistance up to 600°C. They are used for aircraft engine components requiring high-temperature properties.
Ti-15Mo-5Zr-3Al (Grade 21)
Added molybdenum and zirconium provide exceptional corrosion resistance. Used in aerospace fasteners and components needing corrosion protection.
Precautions for MIM Manufacturing of Titanium Alloy Parts
Titanium faces unique challenges in the sintering stage of the metal injection molding (MIM) process. One of the most critical factors is controlling oxygen content. Excessive oxygen absorption can occur during sintering, especially at high temperatures. While increased oxygen content can improve tensile strength, it also reduces ductility, making parts more brittle.
Titanium powder should be processed in a clean environment, and sintering should be carried out in a high-purity inert atmosphere to inhibit oxidation. For applications requiring enhanced mechanical properties, hot isostatic pressing (HIP) can be used after sintering. HIP increases the density of titanium parts by uniformly applying high pressure and high temperature, thereby improving strength, fatigue resistance, and structural integrity. It also helps eliminate residual porosity and refine the microstructure, making it particularly suitable for critical components in medical and aerospace applications.
Non-Traditional MIM Parts Production
We are your preferred partner for producing large, complex metal injection molded (MIM) parts. Leveraging our advanced metallurgical technology, we are able to produce larger and more complex parts that were previously impossible with traditional MIM processes. The uncertainty of isotropic shrinkage in traditional MIM materials increases significantly with part size, typically leading to high dimensional variability, poor dimensional stability, and high material processing costs. Elimold’s innovative approach utilizes high-particle-concentration materials and processes them on mature equipment, enabling high-volume production of complex parts, exceeding 200 grams, using MIM technology.
What Properties Are Suitable for Titanium Metal Injection Molding(MIM)?
The table below outlines what Elimold’s engineering team considers ideal, permissible, and should be avoided when considering titanium injection molding:
Ldeal
- Size: Palm-sized; golf ball-sized or smaller;
- Aspect ratio 5:1 or smaller;
- Uniform wall thickness, with a maximum deviation of approximately 5 times;
- Wall thickness greater than 0.020 inches and less than 0.5 inches;
- Minimum draft angle 0.5°;
- Hollow design to reduce part weight;
- Smooth surface.
Permitted
- Asymmetrical ribs and bosses
- Grooves and threads
- Decorative features (e.g., textures, logos, lettering)
Avoid
- Chamfers;
- Small diameter holes (<0.050 inches);
- Sharp corners or points;
- Wall thickness (<0.020 inches);
- No draft angle
We will gladly advise you!
Do you have any further questions about our titanium alloy MIM process? Feel free to contact the Elimold team anytime. Your project is our challenge! You can also submit your requirements, messages, or confidentiality agreements using our form.
Produce Titanium Alloy MIM Parts Fast and Efficiently
Using Elimold’s titanium alloy MIM technology, you will achieve higher production efficiency. During injection molding and sintering, you can obtain batches of parts with consistent quality in shorter cycle times. While molds do require some initial investment, the unit cost per part decreases significantly in the medium to long term. Simultaneously, many complex machining steps are reduced, thereby lowering labor costs and accelerating production cycles. For our metal injection molding (MIM) process, almost all powder is used directly in the final part, minimizing waste. Choosing this titanium processing technology not only yields high-performance parts but also reduces raw material loss and improves overall production efficiency.
Elimold's In-House Titanium Metal Injection Molding (MIM) Facility

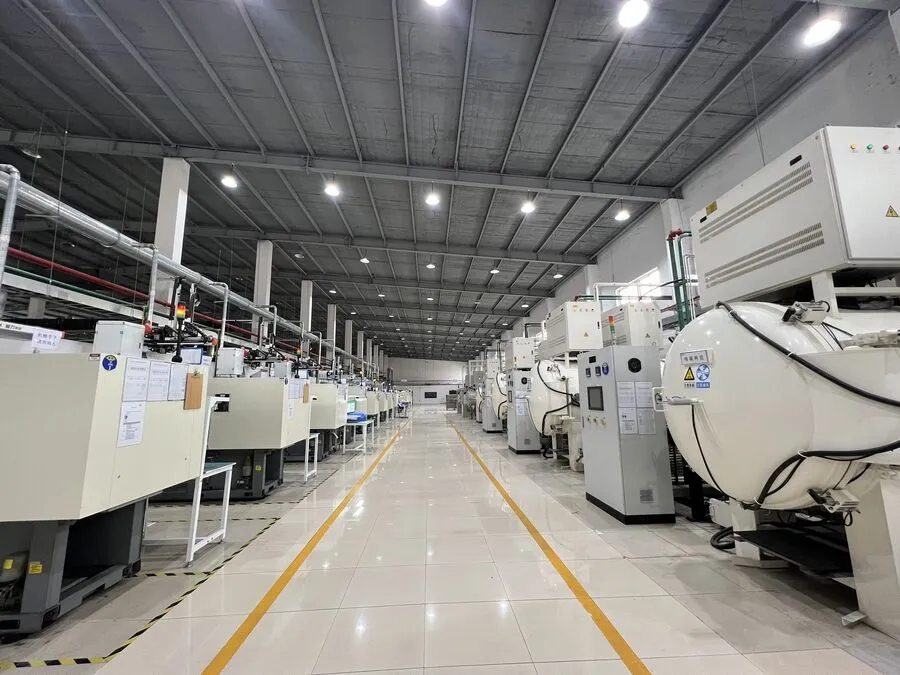

Elimold’s in-house facility spans 221,000 square feet and includes production facilities and two large warehouses for storing raw materials, finished products, and space for customer rental. Multiple loading and unloading platforms facilitate efficient picking and shipping. The facility can meet the production needs of small, medium, and large batches of MIM titanium parts, integrating various processes from MIM design, mold design, mold manufacturing, debinding, sintering, and surface treatment, all the way to final MIM part inspection and assembly. The facility boasts over 80 advanced 110-ton metal injection molding machines with injection volumes of 1.9 oz, 2.7 oz, and 3.7 oz, suitable for single-cavity and multi-cavity molds, meeting the production needs of numerous industries. Furthermore, the facility is capable of 24/7 operation and utilizes state-of-the-art integrated real-time manufacturing ERP software, significantly improving production efficiency and turnover rates, optimizing data acquisition, troubleshooting, overall organization, and customer communication. Our precision MIM parts combine cost-effectiveness with superior quality. Our experienced technical team has overcome the limitations of metal injection molding processes, enabling us to produce MIM parts with excellent mechanical properties and diverse shapes to meet your various needs.
Exceptional Service and Satisfied Customers
We work closely with our clients and respond quickly to their needs. We are happy to participate in the design phase to help clients customize design specifications based on part performance and manufacturability. If you need to produce highly complex parts, potentially resulting in a 15% to 20% scrap rate, we will collaborate with them to customize designs to meet their performance requirements and set a scrap rate target of 5%. Our close service relationship with our clients is reflected in our continuous efforts to identify performance improvement opportunities throughout product development, our focus on design for manufacturability, our supply chain management, and our after-sales follow-up services. We are available 24/7 to support our clients.
MIM Titanium Alloy Parts: Comprehensive Value-Added Services
We also offer a full range of value-added services, including rapid prototyping, electroplating, laser welding, heat treatment, surface finishing and polishing, assembly, and final packaging. As part of Elimold’s core values, the company provides free design capability support for manufacturing. The company oversees the design and manufacture of single-cavity and multi-cavity molds, hot runner molds, and unscrewing molds for nearby domestic mold factories. In addition, Elimold operates modern electric forming machines, continuous and batch debinding sintering furnaces, solvent debinding systems, 5-axis CNC machining and grinding centers, ceramic kilns, embossing equipment, laser etching and engraving equipment, and a testing laboratory.
Testing options for MIM parts
- 3D laser or measuring probe
- chemical analysis
- fluxing
- impact strength
- tensile strengths
- ultrasound
- x-Ray
- yield point
- according to customer requirements
Comparison of TiMIM with Other Machining Processes
TiMIM vs. CNC Machining
TiMIM vs. Investment Casting
TiMIM vs. 3D Printing
Typical TiMIM Components
TiMIM medical components, such as pacemaker components, bone replacement and repair components, cataract surgery equipment, catheter ports, and orthodontic brackets, are all examples of applications. Furthermore, TiMIM components are now used to produce accessories, stents, fasteners, and other miniature parts, extending beyond medical devices. Due to its high precision requirements and perfect surface finish, MIM technology has become a highly competitive manufacturing method. In addition, in the aerospace field, engineers are striving to reduce the size of finished products, and titanium alloys’ excellent strength-to-weight ratio makes them an ideal choice.
Application Industries of Titanium MIM Parts
Medical
Consumer Products
Robotics
Industrial
Electronics Industry
Semiconductors
Aerospace
Military And Defense
New Energy
Automation
Communications
Energy
