Vertical CNC Machining Services

Elimold is committed to providing high-quality machining services and prides itself on its ability to produce parts that meet our customers’ most stringent requirements. They work closely with clients to ensure their needs are met and that each project is completed on time and within budget. Whether you require a single prototype or large-scale production, our vertical machining services can help you meet your machining needs.

Professional CNC Vertical Machining Manufacturer

Elimold provides industry-leading CNC vertical machining services, ensuring that each project meets your precise specifications. No matter what material or part design you choose, our talented team of machinists and engineers will create high-quality precision products at highly competitive prices and reliably comply with relevant industry regulations. From prototyping, milling, turning to welding, full-size assembly and in-house quality inspection, we can provide excellent results and you can rely on us. Whether producing 1 to 10,000 parts, we guarantee to deliver to you at a highly competitive price and high quality standards. To get the best results for your project, contact us today and let us turn your ideas into reality!

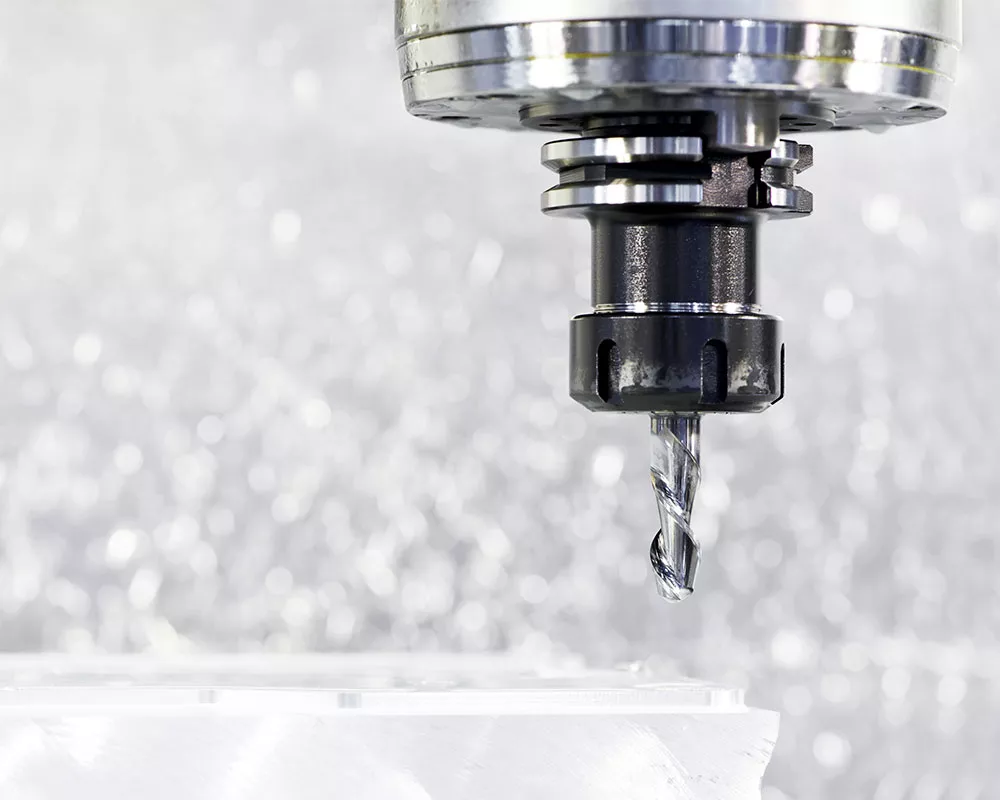

Aluminum alloy material CNC vertical machining

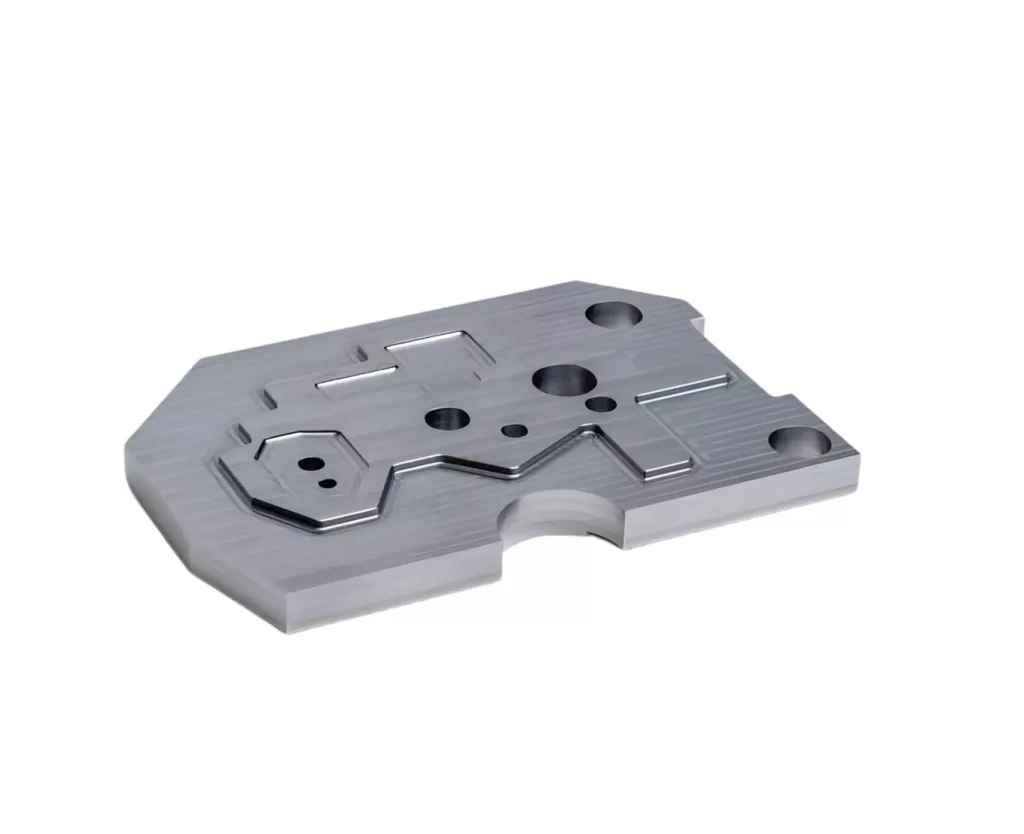

Vertical machining part

Vertical Machining Capabilities

With a wide range of vertical overhead gantry machines, Elimold offers the most comprehensive CNC vertical machining services and production of large parts and large metalwork. Our vertical machining centers have a work envelope of 130″ x 60″ x 24″ and can process parts weighing up to 240,000 pounds. Tolerances on straightness, concentricity, OD, ID, and length are maintained to +/- 0.001″. And we can provide a full range of CNC vertical machining processes: drilling, boring, countersinking, countersinking, profile milling, etc. Production batches range from 20 to 2,000 pieces, and emergency or expedited services are available upon demand with short lead times. With customers in many industries around the world, we are ready to meet any of your needs.

Fast Turnaround Vertical Machining Services

At Elimold, our CNC vertical machining process combines extensive knowledge, thoughtful thinking, and the expertise of our machinists and technicians to produce high-quality parts. Vertical milling allows us to create fine shapes or finishes on any bar, plate, or block. And we are able to offer our customers fast turnaround times. Lead times for prototype parts typically average 2 to 3 weeks, while production parts average 4 to 6 weeks. We also offer expedited services to meet emergency situations. Additionally, we can grind, vibrate grind, heat treat, or plate machined parts to meet customer requirements.

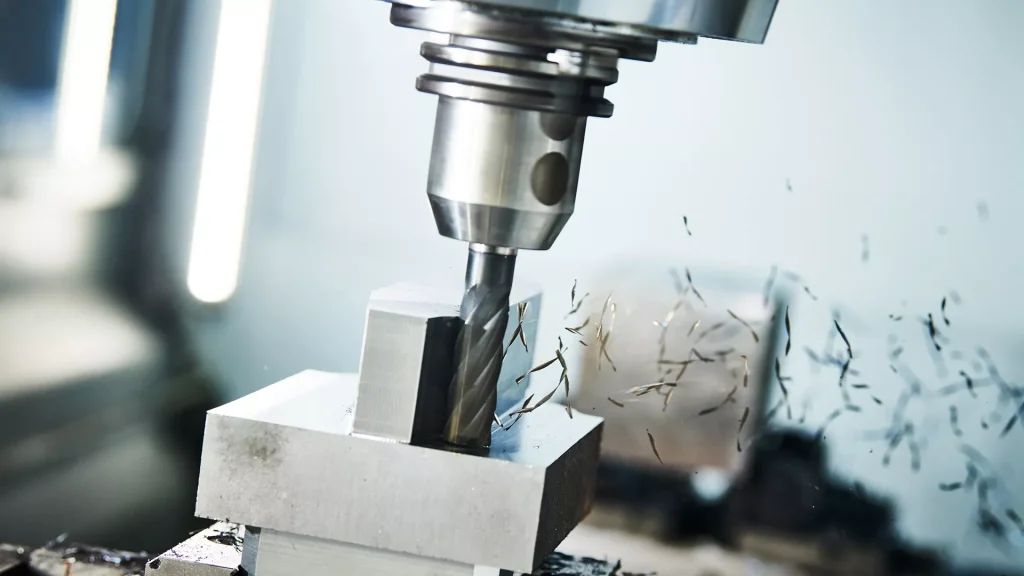

Vertical CNC Machining Services

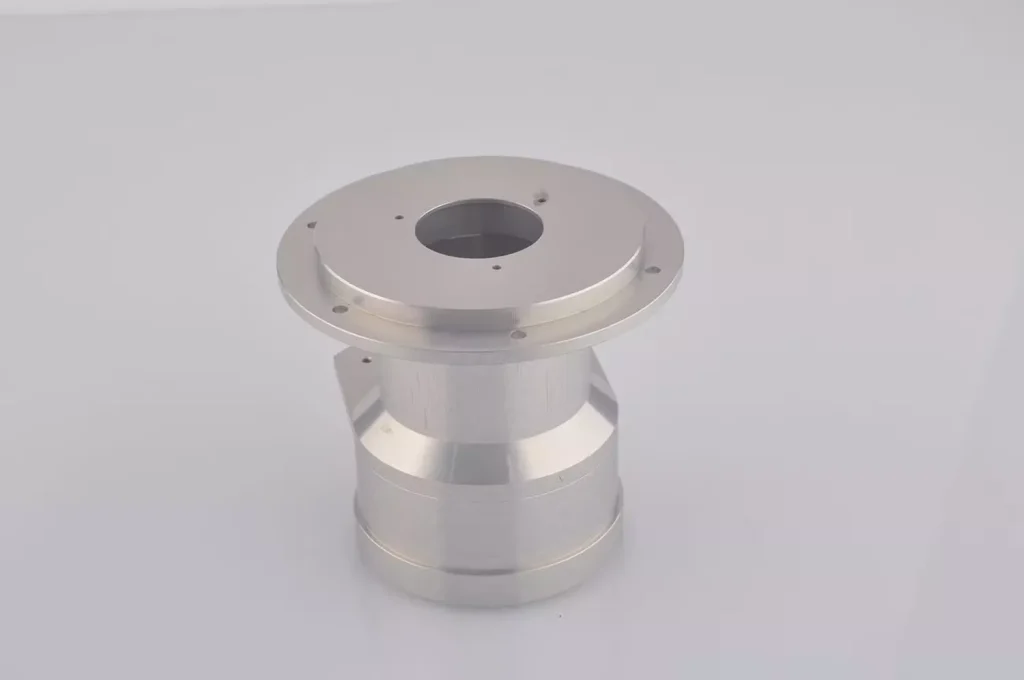

Customized vertical CNC machining parts stainless steel machinery equipment spare parts

Engineering & Design Services

We offer comprehensive vertical CNC machining manufacturing services for volume production needs, with the majority of our work being custom to specification. However, we have the expertise to assist you with design engineering, including design for manufacturing (DFM), and services such as reverse engineering of components or enclosures. As a full-service shop, we also offer a variety of custom services, including powder coating and wet spraying, shearing, stamping, MIG and TIG welding, surface deburring and texturing, bending and forming, and spot welding. Other services include screen printing, hardware installation, finishing, full quality assurance, and prototyping services.

Quality Management & Certifications

As an ISO9001:2015 and ASD9100 D certified manufacturer serving all industries worldwide, Elimold understands that product traceability and batch control are essential requirements. Therefore, we ensure that all processes are fully traceable to ensure compliance with your strict regulatory specifications. And we never settle for the status quo. Our team is constantly improving processing techniques and integrating new software and hardware to increase efficiency and precision. Our mission is to continuously explore ways to improve our team, product offerings, and processing to provide excellent customer service and ensure on-time delivery of precision products with the highest quality and value. As part of our commitment to quality and compliance with industry standards, we follow strict quality control practices to ensure peace of mind.

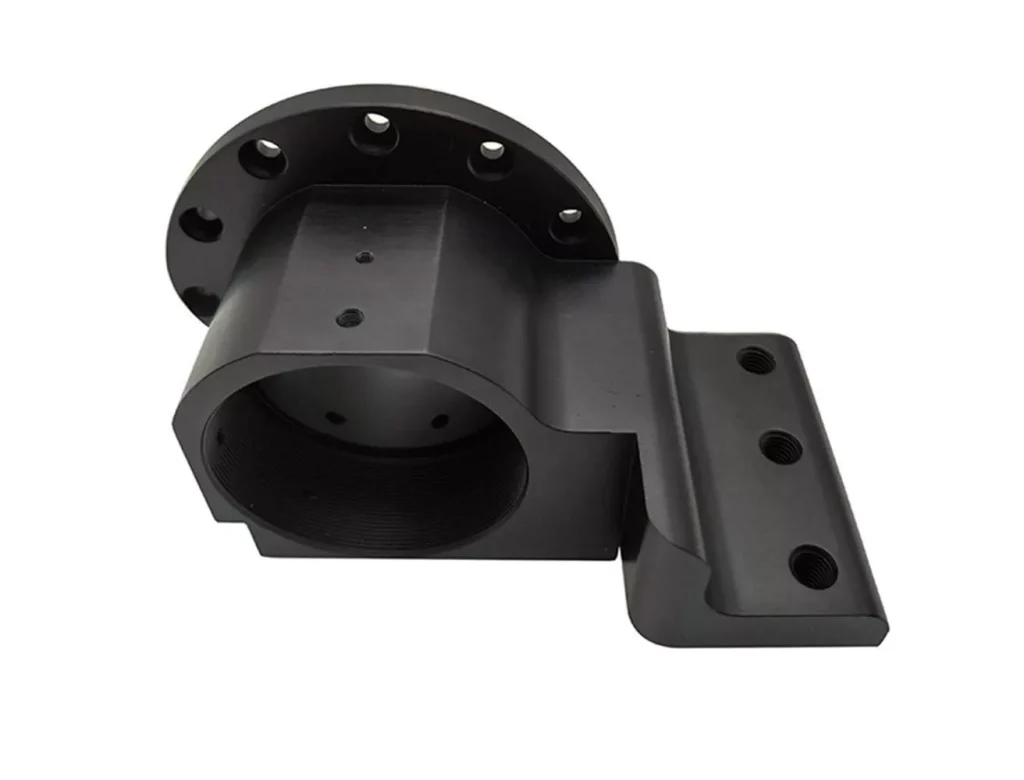

Competitive price vertical precision CNC machining parts 3D

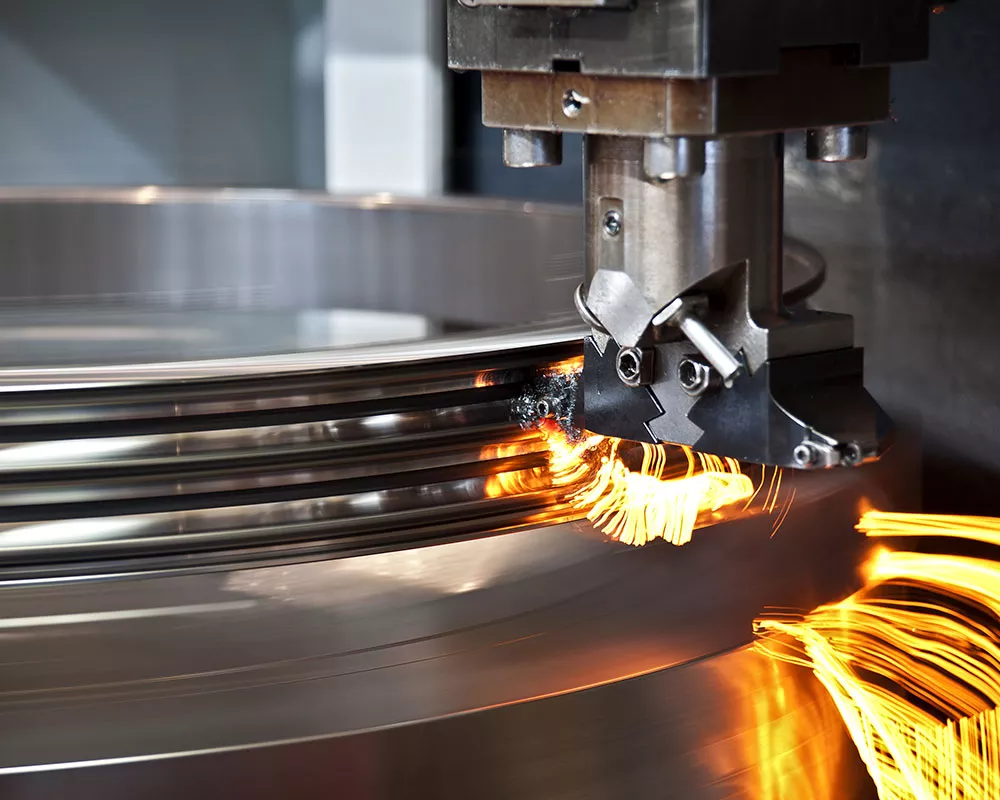

Vertical CNC machining of large stainless steel parts

Leading Brand in Precision Vertical CNC Machining Solutions

Elimold is one of the world’s leading providers of premium vertical CNC machining services, built on excellence in quality and customer service. We are committed to taking on challenging vertical CNC machining jobs that few suppliers in the industry can handle. We continue to expand our service offerings and seek better ways to serve our customers to maintain our authority in custom precision CNC components. And our vertical CNC machining services surpass traditional sand casting methods in terms of accuracy and complexity. From roughing to finishing, we cover the entire machining process, and from initial cutting to final inspection, every project is completed in-house to ensure the highest quality and tightest tolerances. We have advanced equipment and skilled machinists to deliver accurate and consistent precision parts.

Responsive Vertical Machining Service Process

Elimold has established a unique “Responsive Machining” consulting process that provides the cornerstone of superior precision and accuracy in each project. The core of the service is a thorough review of the drawings submitted by the customer, ensuring that each project is carefully reviewed and that all specifications are thoroughly understood and integrated into the machining process. The iterative nature of the consulting process allows us to make multiple adjustments and improvements as needed to ensure that the final product fully meets the customer’s specifications. This iterative improvement not only improves the accuracy of the machined parts, but also helps to significantly save the cost per piece. In addition, by actively communicating with customers throughout the machining consultation process, establishing a collaborative environment, encouraging customer feedback, and seamlessly integrating various adjustments. It can streamline the production process and minimize the possibility of errors or misunderstandings, ultimately helping to achieve more efficient and cost-effective results. Deliver high-quality, high-precision machined parts with expertise, quick response and attention to detail.

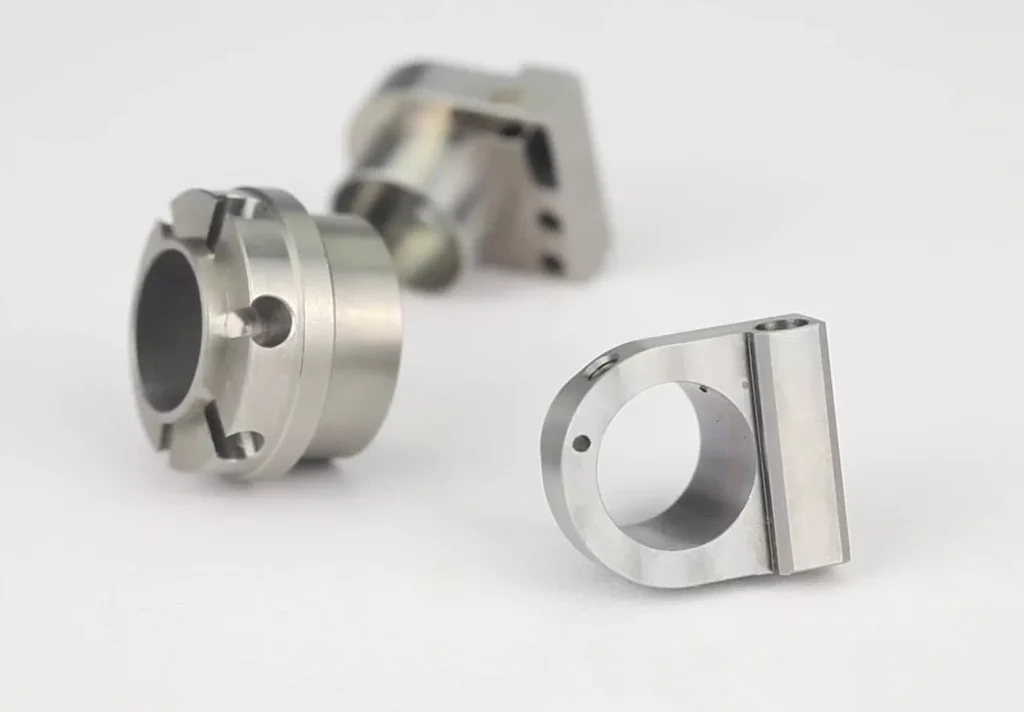

CNC vertical machining of metal connectors for precision equipment

Your Trusted Vertical CNC Machining Partner

By seamlessly integrating advanced vertical CNC machining technologies, Elimold stands at the forefront of precision engineering for custom machine parts. Its dedication to innovation is reflected in its advanced manufacturing processes that produce complex, custom machine parts with exceptional precision and efficiency. The company’s responsive service is the cornerstone of its operations, ensuring that its customers’ unique specifications and requirements are not only met, but their expectations are exceeded. This commitment to custom solutions solidifies Elimold’s enduring relationships with its customers, making it a trusted partner in achieving product excellence. Additionally, its highly competitive cost structure underscores its commitment to value creation, making it an industry leader in custom machine parts.

Value-added service capabilities

You can choose to outsource your vertical machining project to Elimold’s professional CNC machining workshop. Our one-stop service can provide a variety of value-added services. Therefore, our team of engineers can take care of machining, assembling, testing and cleaning your parts ready for delivery, minimizing disruption to your supply chain. As a professional custom parts manufacturer with many years of industry experience, we have accumulated rich skills and capabilities to ensure that any specification requirements can be met on time every time.

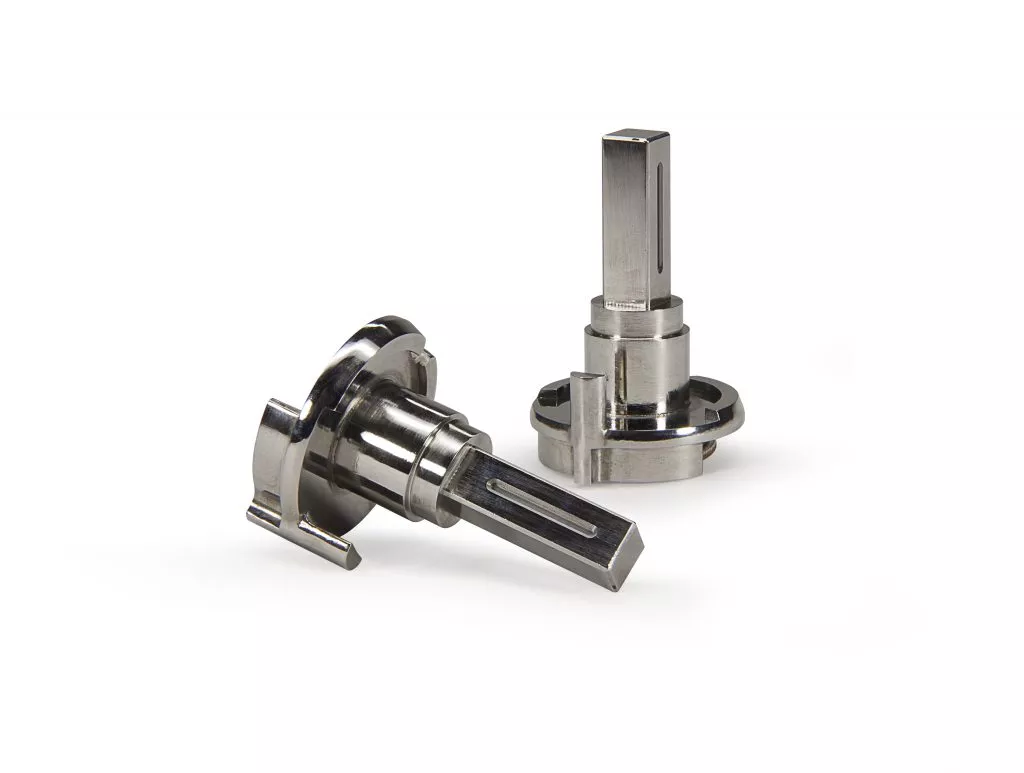

Vertical CNC machining of precision parts for medical equipment

Discuss Your CNC Machining Project with Elimold

To discuss your next project, request a quote or contact the experts at Elimold today.

What is CNC vertical machining?

CNC (computer numerical control) vertical machining is a manufacturing process that uses CNC machine tools to create parts and assemblies by removing material from a workpiece. The term “vertical machining” specifically refers to the orientation of the machining spindle within the machine tool, with the spindle perpendicular to the table. This setup allows the cutting tool to move in a vertical direction, primarily along the Z axis, while the workpiece remains stationary on the table.

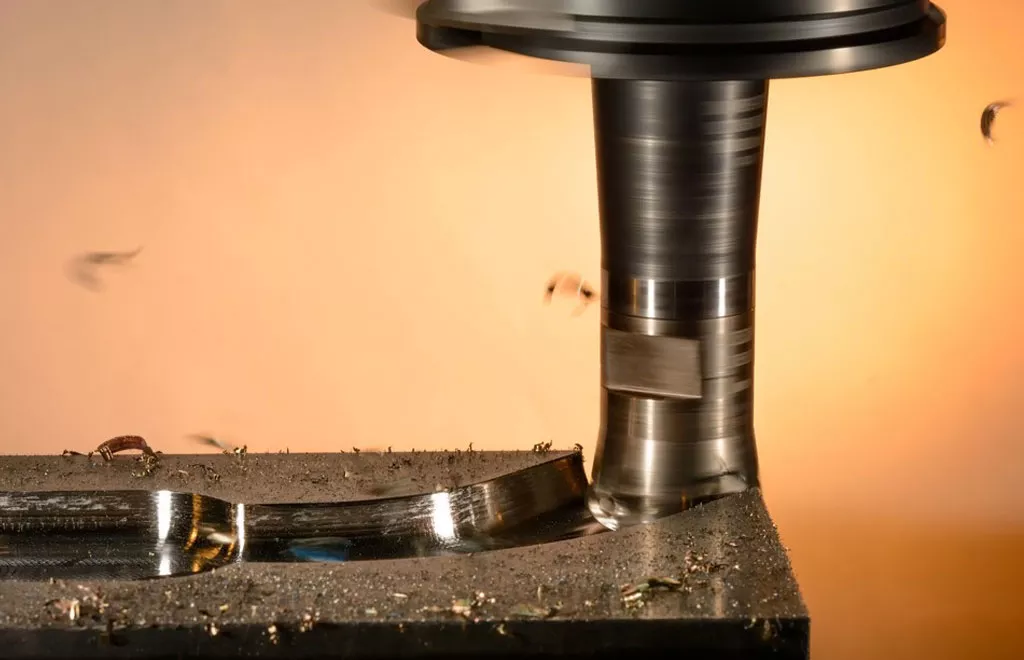

Mechanical parts vertical CNC machining services

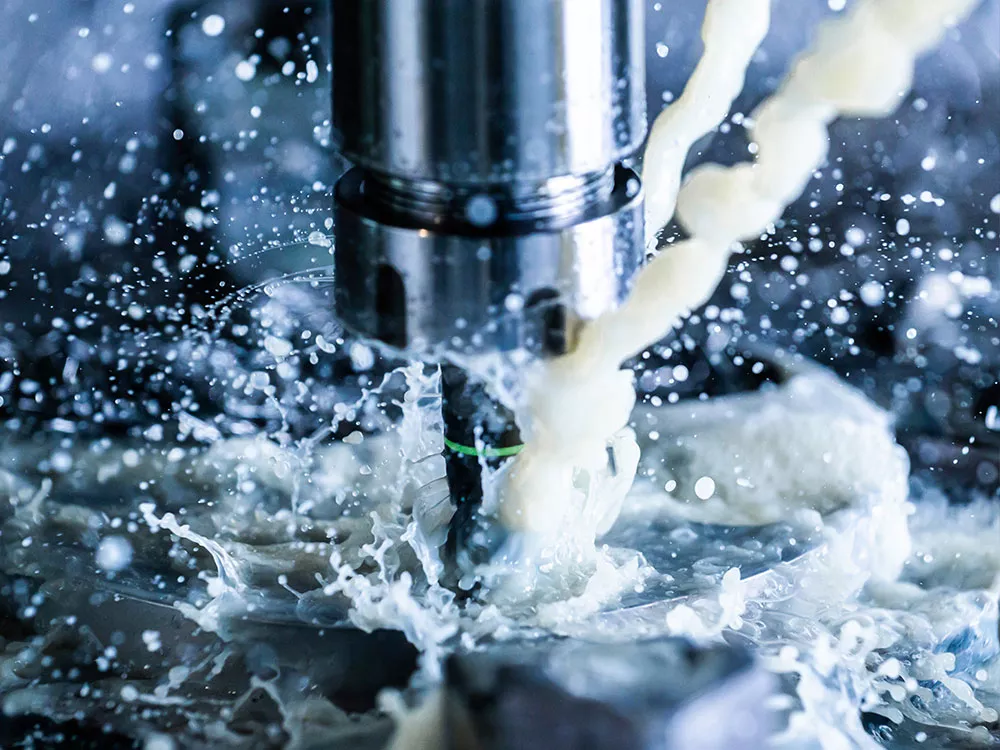

Vertical CNC machining precision parts

What are the advantages of CNC vertical machining?

CNC vertical machines are increasingly popular for their efficiency and high production levels. Listed below are just a few of the benefits a vertical machine center (HMC) has to offer:

  • Efficient processing time: A vertical machine can swap pallets, reducing the delay between machining cycles. Several pieces can be finished in one cycle, saving time and floor space.
  • Quick machining: A vertical machine is often better suited for smaller and faster machining jobs than its horizontal counterpart.
  • Production Benefits: Higher visibility means easier operation. Vertical machines are great for large, less complex projects and lower quantities.

Material Options

Elimold can provide vertical manufacturing services for very large parts and can process a variety of materials. The main focus is on using the highest quality alloy materials and specialty materials for part processing.

Metals

  • Aluminum
  • Brass
  • Bronze Alloys
  • Copper
  • Iron
  • Nickel
  • Stainless Steel
  • Stellite
  • Titanium
  • Zinc
  • Inconel
  • Invar
  • Iridium
  • Kovar
  • Molybdenum
  • Monel
  • Niobium
  • Palladium
  • Superalloys
  • Tantalum

Plastics

  • ABS
  • Acetal
  • Acrylic
  • Delrin®
  • Fiberglass Reinforced Plastics
  • Nylon
  • Phenolic
  • Polyamide-Imide (Torlon™)
  • Polycarbonate (PC)
  • Polyetheretherketone (PEEK)
  • Polyetherimide (PEI)
  • Polyethylene (PE)
  • Polyphenylene Sulfide (PPS)
  • Polypropylene (PP)
  • Polystyrene (PS)
  • Polysulphone
  • PolyTetraFluoroEthylene (PTFE)
  • Polyvinyl Chloride (PVC)
  • Polyvinylidene Fluoride (PVDF)
  • UHMW

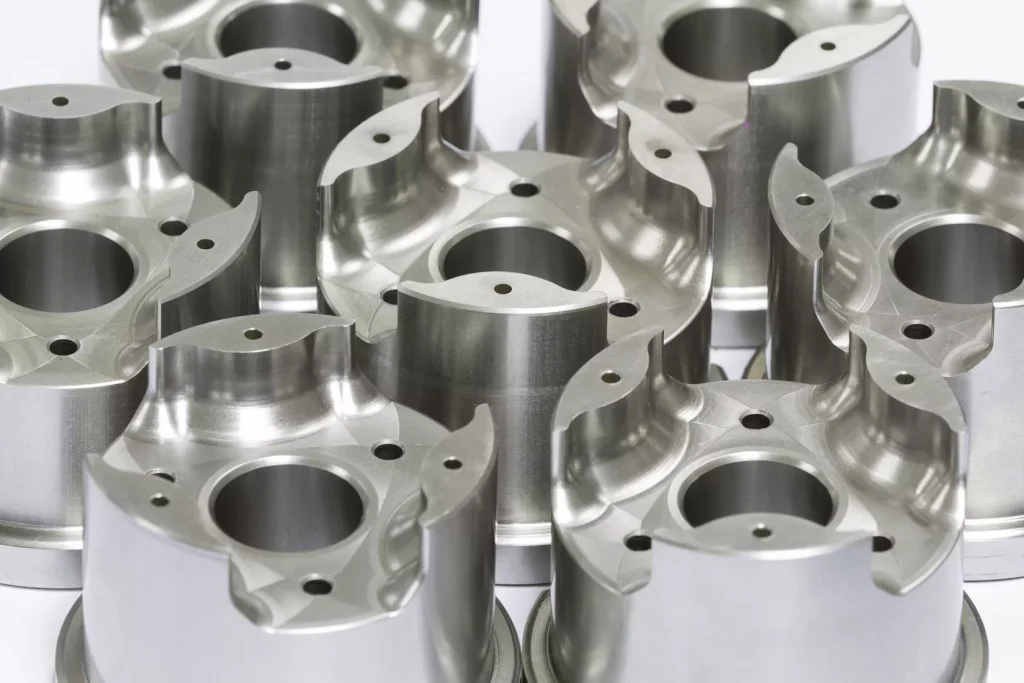

Vertical CNC Machining parts

Other Materials

In order to provide you with versatile vertical CNC machining solutions that can process and manufacture a variety of special materials for precision parts, Elimold offers the following special material options.

  • Ceramic
  • Composite Materials
  • Fiberglass
  • Glass
  • Graphite
  • Polyester

Surface Finishing Options

  • Anodizing
  • Bead Blasting
  • Powder Coating
  • Electropolishing
  • Passivation
  • Brushed Finish
  • Polishing
  • Painting
  • Zinc Plating
  • Chrome Plating
  • Black Oxide
  • Hard Coat Anodizing
  • Sandblasting
  • Laser Engraving
  • Chemical Film
  • Nickel Plating
  • Tumble Deburring
  • Vibratory Finishing
  • Shot Peening
  • Heat Treating

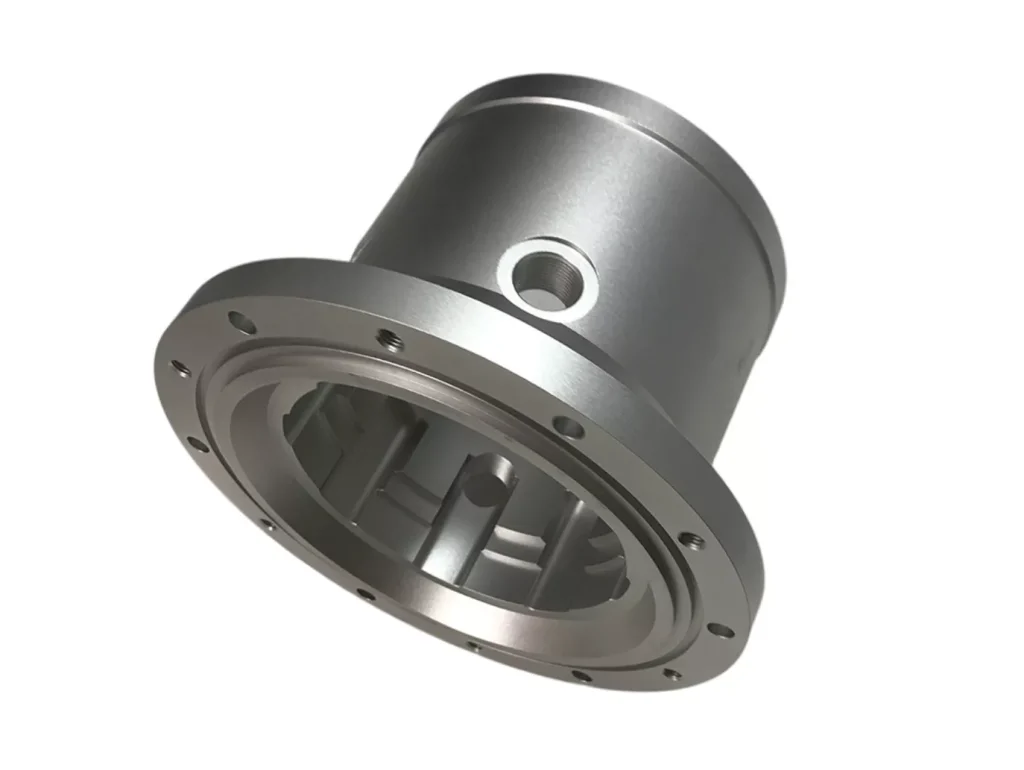

Vertical CNC Machining Stainless steel Part

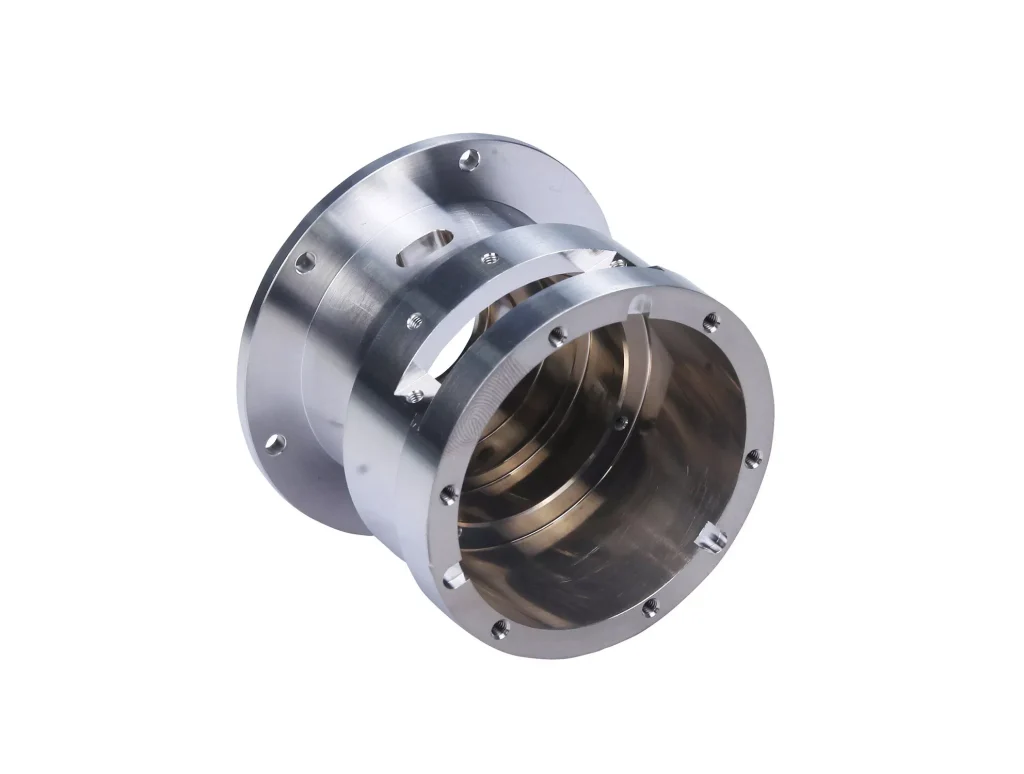

CNC Service Stainless Steel Parts Machining Vertical

Industries We Serve

Whatever your application, our engineers are happy to assist you in bringing your customized precision product to market. Our vertical CNC machining capabilities allow us to manufacture parts for nearly every industry, such as:

  • Aerospace
  • Agricultural
  • Architectural
  • Auto and Truck
  • Chemical
  • Dental
  • Electronic
  • Food
  • Robotics
  • Marine
  • Medical
  • Military
  • Oil Field
  • Optical
  • Packaging
  • Pharmaceutical

Application

Regardless of your batch size, our vertical machining department can provide you with high-quality, precision machined parts at an economical price. Our customer service team will work closely with you to develop the most advantageous ordering program. We accept batch orders and support Kanban and just-in-time delivery systems.

  • Actuator Shafts
  • Adapters
  • Adjusting Bolts
  • Air Regulators
  • Anchors
  • API Flanges
  • Back-Up Flanges
  • Balls
  • Ball Swivels
  • Barbed Fittings
  • Barrels
  • Bearing Locking Rings
  • Blind Flanges
  • Bolts
  • Bushings
  • Cable Glands
  • Cable Retainers
  • Caps
  • Cap Nuts
  • Cap Screws
  • Cases
  • Check Needles
  • Check Valves
  • Check Valve Bodies
  • Clevis’
  • Closed-End Inserts
  • Collars
  • Connector Housings
  • Contacts
  • Covers
  • Crimp Sleeves
  • Double-Ended Studs
  • Dowels
  • End Caps
  • Extenders
  • Ferrules
  • Gear Blanks
  • Glands
  • Gland Nuts
  • Handles
  • Head Poppet Stems
  • Hose Connectors
  • Housings
  • Knobs
  • Knurled Inserts
  • Lap Joint Flanges
  • Levers
  • Molded Inserts
  • Nipples
  • Notched Inserts
  • Open-End Inserts
  • Pinion Rods
  • Pins
  • Pistons
  • Piston Seats
  • Piston Stems
  • Plungers
  • Pole Faces
  • Poppets
  • Ports

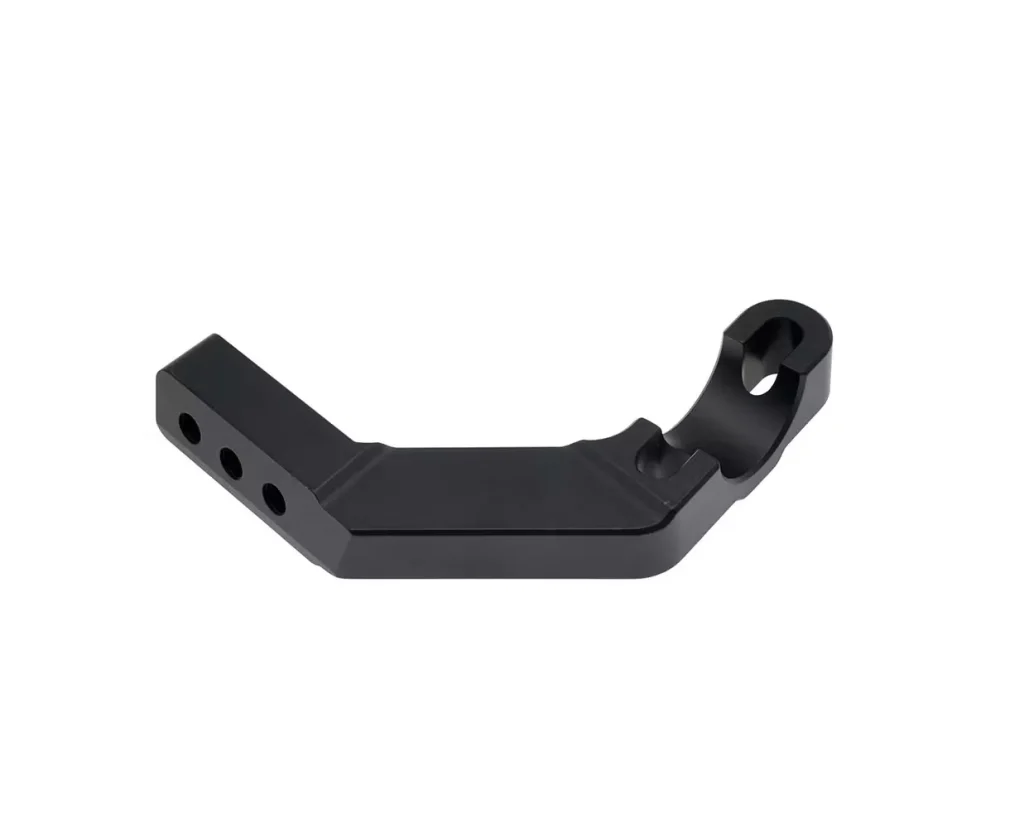

Customized CNC vertical processing of new energy vehicle parts

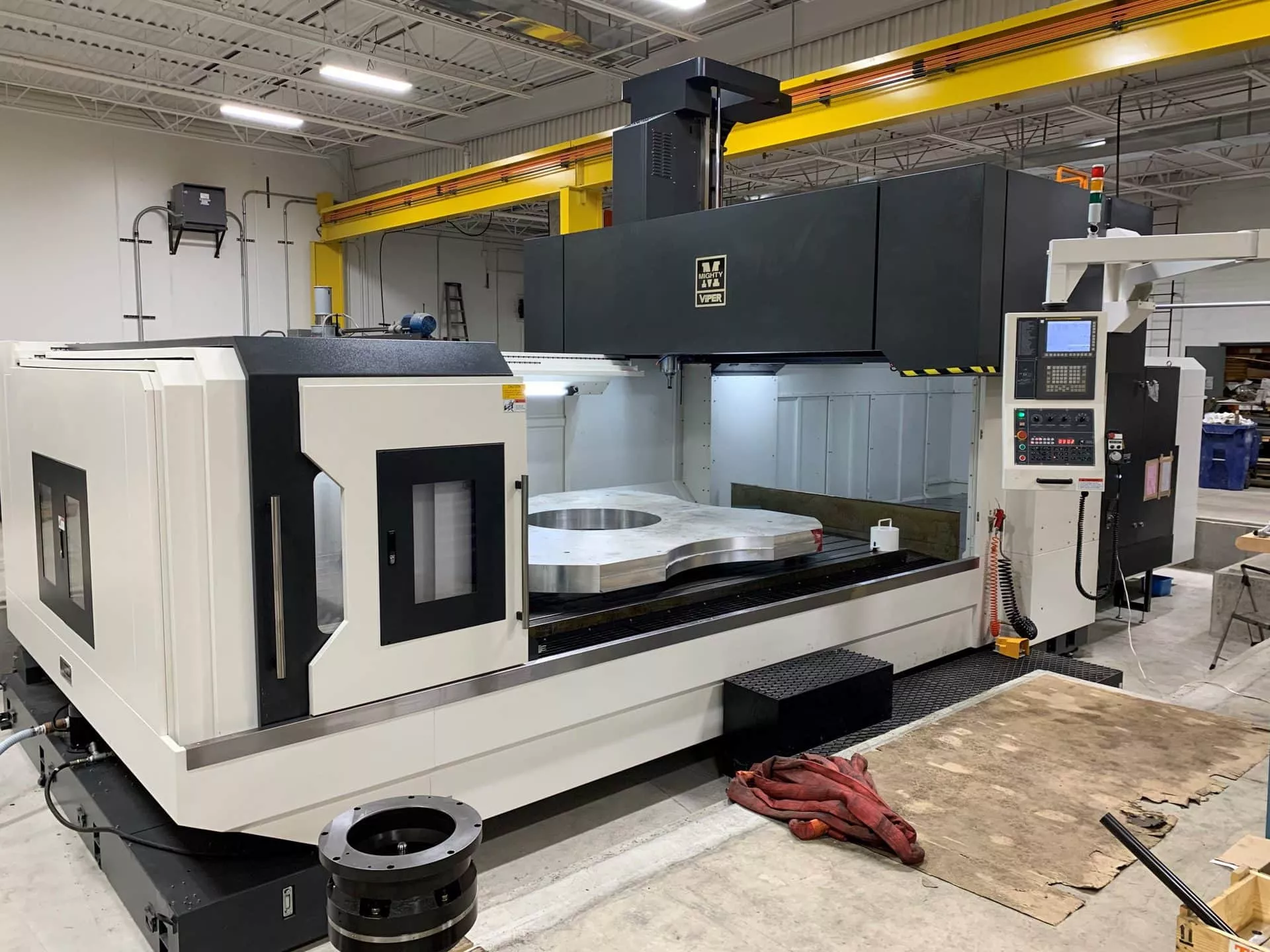

Vertical CNC Machining Service Provider

Elimold has a team of highly skilled machinists who use the latest CNC technology and programming software to ensure that every part produced meets the customer’s precise specifications. They offer a range of vertical machining services, are able to handle both small and large batches, and pride themselves on being able to produce parts to meet the most stringent requirements of their customers. They work closely with their customers to ensure that their needs are met and that each project is completed on time and within budget. Whether you require a single prototype or large-scale production, Elimold vertical machining services can meet your machining needs.

Other CNC Machining Services

Whatever your application, Elimold engineers are happy to help you get your product to market in the shortest possible time and at the lowest cost. We are committed to providing you with quality engineering, design services, and supply chain management that exceed your expectations and meet all of your specifications. In addition to vertical CNC machining services, we also offer:

cnc milling

CNC Milling

Our CNC machining services allow for the creation of complex milled parts at velocity. This expands the potential range of materials without minimising efficiency and standards. We can manufacture complex parts in a wide range of sizes, quantities, and with multiple angled features.
CNC turning

CNC Turning

Our team continues to refresh our fleet of machines, investing significantly in our Turning and Mill/Turn technology. This allows us to remain ahead of the game, providing a tailored service and solution to our customers that is hard to match within the industry.
3 axis cnc machining

3 Axis CNC Machining

The 3 axis CNC machining services offer the best value in the industry for small CNC machines. It packs a punch, an efficient smaller package that delivers big results and high standards of productivity. The best way to maintain productivity in a smaller space.
4 axis cnc machining

4 Axis CNC Machining

4 axis CNC machining is where the 4th axis rotates whilst the machine is not cutting, aiding precision. Our range of CNC machining services is designed to offer a wide range of precision to fit any manufacturing complexities and demand.
5 axis cnc machining

5 Axis CNC Machining

We continue to innovate, refining our 5 axis CNC machining services for maximum output at reduced time and cost. The 5 axis provides you with the power and precision for myriad uses, maintaining accuracy and delivering consistently.
cnc machining rapid prototying

CNC Prototypes

Creating a prototype is an important part of the manufacturing process. Our services allow our clients to see a product, part, or concept in action before making a decision on whether to continue production or make necessary changes.
Wire EDM Machining 1

Wire EDM Machining

Our advanced Wire EDM machines allow us to complete complex projects at quick turnarounds, and in tight tolerances up to +/_ 0.0001. We employ 4-axis machining to produce high-quality products. We use various advanced CAM software, which helps us import parts, files, and drawings easily.
CNC Threading and Tapping 1

CNC Threading and Tapping

Many components require threaded holes or tapped features for mounting screws, fasteners, or connectors. Our CNC machining service offers precise threading and tapping capabilities, ensuring that these essential features are accurately created to the required specifications.
CNC High Speed Drilling 1

CNC High-Speed Drilling

Custom parts manufacturing often involves drilling precise holes for components, connectors, and fasteners. Our High-speed dril with CNC machines guarantees accurate hole placement, diameter, and depth.
CNC Swiss Machining Service

Swiss Machining Service

Swiss machining is an efficient way to produce complex, or slender component. By moving both live tooling and the workpiece, we can always cut the material which is close to the workpiece holder. To avoid deformation compared to traditional CNC lathe.
CNC Routing Service

CNC Routing Service

Besides standard milling service for parts in engineering plastics or metals, we also offer CNC routing service for prototypes and parts in soft materials such as EPS foam, EVA, woods.
CNC Grinding Service

CNC Grinding Service

If you need a super flat surface part, or round part that needs OD and ID +/- 0.005mm in tolerances, our CNC grinding machining service will be the best match of your production needs for such type of parts.

Request Your Free Vertical CNC Machining Quote Today

After receiving your drawings, our engineers will analyze your custom Vertical CNC Machining parts right away. We actively work with you to clarify all details before providing a quote that is both economical and accurate.
