CNC High Speed Vertical Milling

Elimold specializes in providing high quality precision high speed vertical milling services. Our highly skilled team and advanced equipment enable us to manufacture components with exceptional precision and quality.

Expertly Crafted Components for Demanding Industries

At Elimold, we provide quality Vertical CNC Milling services to customers across a wide range of industries. Our processes range from drilling and boring to cam profiling and tapping to 3D contouring and pocketing. We utilize 4- and 5-axis horizontal milling machines as well as high-speed vertical milling machines that have spindle speeds up to 50,000 RPM. Our milling capabilities are well suited to a wide range of applications; including everything from prototypes to large-scale composite orders. Our milling machines are powerful and designed to machine materials that are difficult or impossible to machine economically on lesser systems. When this capability is combined with our precision grinding resources, we can achieve ultra-precise surface finishes and tolerances to meet the needs of nearly any application.
As a true full-service machine shop, our expertise and equipment resources extend far beyond the machining and grinding phases of a project. On the front end, we can provide engineering support, reverse engineering, and in-house CAM programming. On the back end, we take care of all deburring and cleaning, our quality department will prepare quality control reports, and is equipped with a variety of testing and inspection equipment to ensure and verify all dimensional specifications and full compliance with the most stringent industry standards.
We embrace a culture of quality in every department and throughout our staff. We use lean methods and common sense processes to improve every stage of production. We have achieved success, and repeat customers trust our ability to deliver on our uncompromising commitment to quality.

CNC High Speed Vertical Milling Capabilities

Our ISO certified machine shop is well equipped with 30 4-axis machining centers. In addition, we have 20 high-speed vertical milling machines, and our CNC vertical machining equipment has five-axis cutting capabilities, a working range of 83 x 47 x 35 inches, and a full rotary table that can handle parts up to 20 inches in diameter. Our vertical machining operation provides a variety of vertical milling operations, including drilling, countersinking and profiling. While meeting extremely tight (±) 0.0002-inch precision tolerances on all part dimensions. Serving a variety of industries with great success. Regardless of your batch size, our vertical machining department can provide you with high-quality, precision machined parts at an economical price. Our customer service team will work closely with you to develop an ordering arrangement that is most beneficial to you.

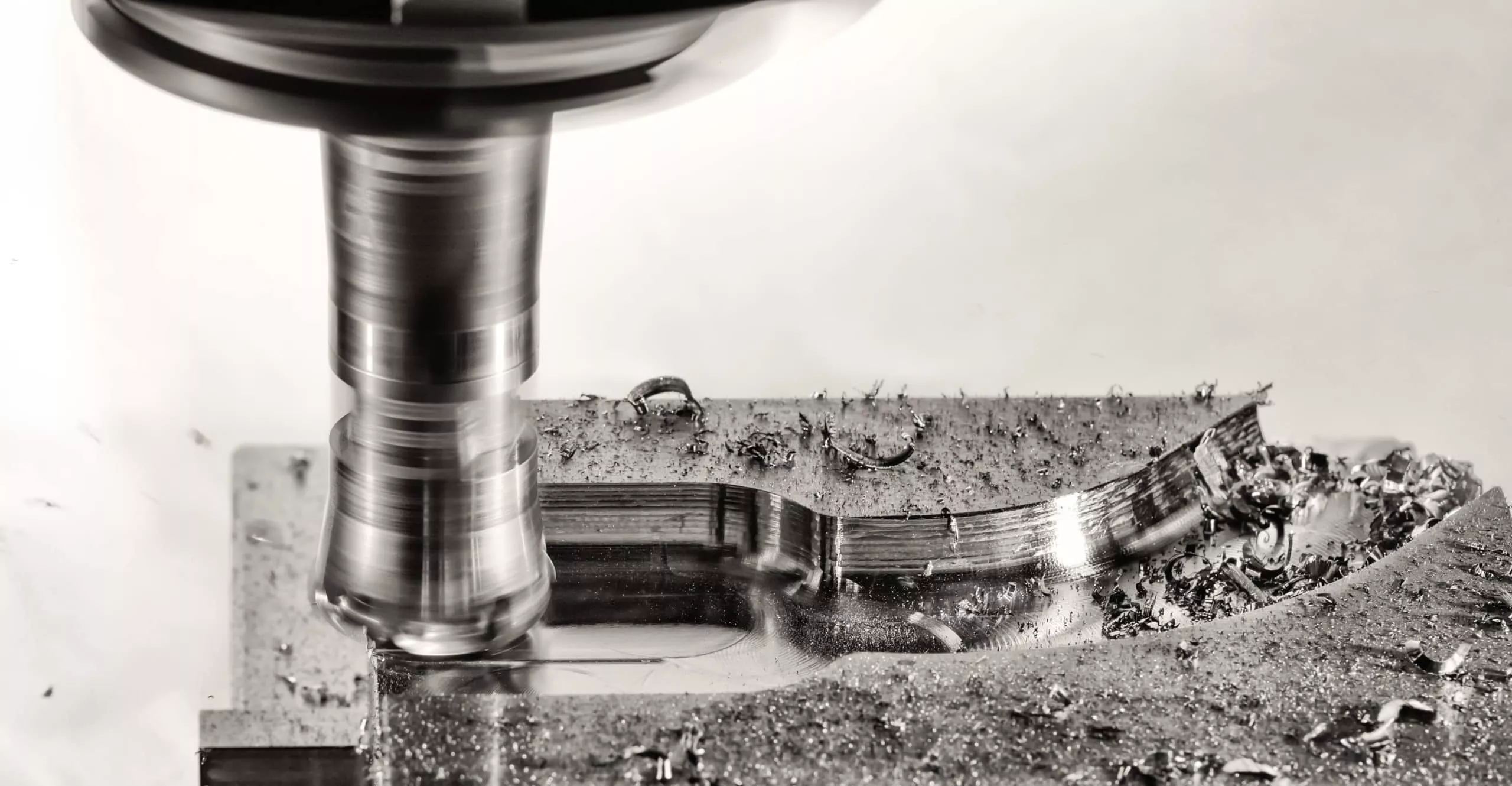

Low Volume 5 Axis CNC milling CNC High Speed Vertical Milling.jpeg 1

Quality Assurance and Compliance

At Elimold, we prioritize quality and compliance. We adhere to strict quality control measures and maintain certifications such as AS9100:2009, Aerospace Industry Standard, ISO 9001:2008
, International Organization for Standardization, etc., ensuring that our services meet or exceed industry standards standards.

Supporting Services

In addition to precision vertical CNC milling, we also provide comprehensive support services:

  • CAD/CAM Design and Engineering: Our skilled design and engineering team can assist with component design, prototyping, and process optimization to guarantee the success of your project.
  • Inspection and Quality Control: We employ advanced inspection and testing equipment, ensuring every component we produce meets your exact specifications.
High Precision CNC Machining Part for Power Supply Automotive Industry

Advantages of High-Speed ​​Vertical CNC Turning

Vertical CNC machining produces precision parts with complex geometries, curved surfaces, box-shaped parts or irregular features. Vertical precision milling services are an ideal solution for small parts, short runs and complex production, ensuring the quality of your parts through automatic toolpath compensation, high-speed material removal rates and more.
Advanced CNC vertical machines are powerful machines with high production and high precision. Our engineers will machine, assemble and clean your parts in preparation for delivery, ensuring minimal disruption to your supply chain.
In addition, ISO-compliant CNC vertical machining services can be used to mill a variety of materials, from plastics and glass to various metals. Able to meet all production needs from small batches to large batches, vertical milling operations have helped multiple industries such as military, medical and transportation. Best-in-class CNC vertical milling services can exceed customer expectations.

Materials

We use a wide variety of materials to suit your unique requirements.

  • Alloy Steels
  • Aluminum
  • Brass
  • Bronze Alloys
  • Carbon Steel
  • Copper
  • Iron
  • Lead
  • Magnesium
  • Monel
  • Nickel
  • Powdered Metals
  • Stainless Steel
  • Titanium
  • Tool Steels
  • Tungsten
  • Inconel
  • Invar
  • Kovars
  • Monel
  • Superalloys
  • Tantalum
  • Monel
  • Superalloys
  • Tantalum
  • ABS (Acrylonitrile Butadiene Styrene)
  • Acetal
  • Acrylic
  • Fiberglass Reinforced Plastics
  • Nylon
  • Phenolic
  • Polyamide-Imide
  • Polycarbonate
  • Polyetheretherketone (PEEK)
  • Polyetherimide
  • Polyethylene
  • Polyphenylene Sulfide
  • Polypropylene
  • Polystyrene
  • Polysulfone
  • PTFE (PolyTetraFluoroEthylene)
  • PVC (Polyvinyl Chloride)
  • PVDF (Polyvinylidene Fluoride)
  • Teflon
  • Ceramic
  • Composite Materials
  • Fiberglass
  • Graphite
CNC High Speed Vertical Milling serivce

Industry Focus

  • Aerospace
  • Automation
  • Biomedical
  • Biopharmaceutical
  • Computer and Electronics
  • Cryogenic
  • Dental
  • Defense
  • Industry Department of Energy (DOE)
  • Department of Defense (DOD)
  • Electrical
  • Energy
  • Textile
  • Tool & Die
  • Heavy Equipment
  • Hydraulics
  • Industrial
  • Injection Molding
  • Laboratory
  • Machine Tools
  • Machinery
  • Manufacturing
  • Marine
  • Material Handling & Processing
  • Medical
  • Transportation
  • Military
  • Telecommunications
  • Nano Technology
  • Packaging & Converting
  • Paper & Pulp Paper Mill
  • Pneumatics
  • Alternative Power Generation
  • Solar Power Generation
  • Wind Power Generation
  • Research
  • Robotics
  • Semiconductor
  • Specialty Machinery
CNC High Speed Vertical Milling service 01

Parts that can be produced

Whatever your application, our engineers are happy to assist you in any way they can to bring your custom precision product to market. Our high-speed vertical CNC milling capabilities allow us to manufacture components for nearly any industry, such as:

  • Box type parts, such as engine blocks, gearboxes, spindle boxes, and gear pump shells
  • Complex curved parts, such as cams, engine impellers, propellers, and mold cavities
  • Specialty or irregular parts, such as brackets and bases

Are you interested in horizontal milling for your next project?

To learn more about our milling services or request a quote, please contact us. Our team of experts is ready to help you with your next milling project.
