Copper Gears
We provide custom-made copper gears for clients across various industries worldwide, meeting their requirements for precision, durability, and one-time assembly accuracy. Whether you already have production drawings or need reverse engineering of worn gears, our team can utilize advanced equipment to complete the gear cutting, hobbing, and grinding processes in our factory. Contact us today for a copper gear quote; we will reply within 4 hours.
Copper Gear Manufacturer
If you require high-volume manufacturing of special, rare, or fully custom copper gears, Elimold is the place to go. Our experienced team of engineers will create high-quality, high-performance parts that meet or exceed your expectations based on your gear design. We can produce custom copper gears with virtually any pitch, pressure angle, and tooth profile. Furthermore, we can use almost any type of copper material and customize gears of any diameter to your needs. Our engineers will work closely with you to assess your custom copper gear design requirements and help you determine the best solution for your application.
Custom-Made Precision Copper Gears to Your Project Specifications
When designing custom copper gears, selecting the appropriate pitch, pressure angle, tooth width, number of teeth, and material is crucial. These parameters control the center distance of the meshing gears, as well as the weight, strength, and lifespan of the drive system. With over 15 years of industry leadership in high-quality copper gear solutions, thanks to the Elimold engineering team, our engineers can assist you in designing custom copper gears and manufacturing non-standard copper gear products to your specifications. While we can manufacture a wide variety of copper gears, our customers continue to innovate, providing unique and novel designs and applications. We aim to collaborate with our customers, providing flexible equipment to meet these needs, regardless of order size.

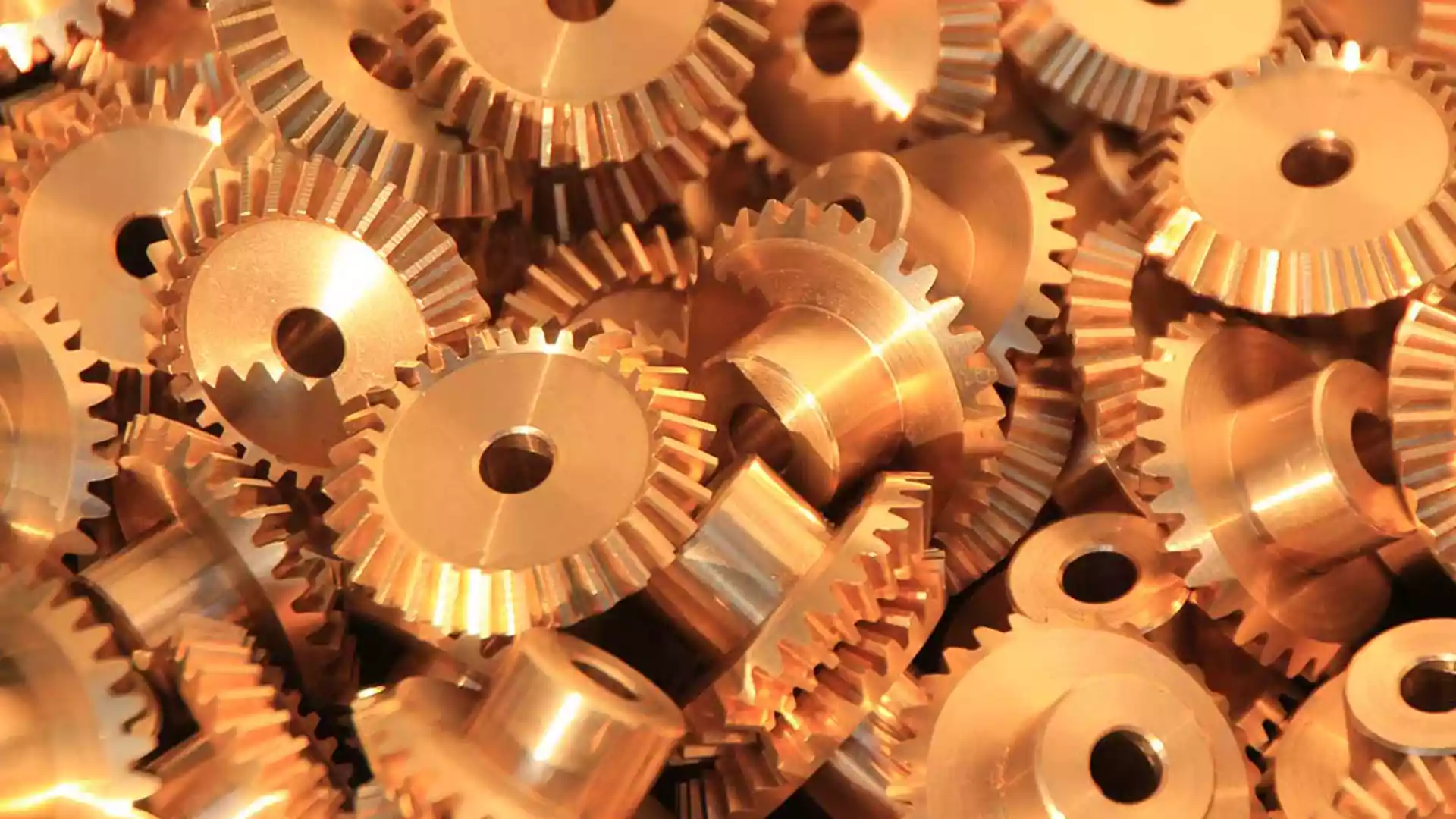

Copper Gear Manufacturing Services from Prototype to Mass Production
Working with a custom copper gear manufacturer to create unique, high-precision copper gears has never been easier. From concept design and prototyping to mass production, our product experts will be with you every step of the way, helping you achieve innovative and durable manufacturing solutions. All engineering and manufacturing are done in-house, ensuring we have complete control over product quality, delivery times, and rapid response to customer needs. From initial design to full-scale production, our team supports every stage of development, providing valuable insights with over 15 years of experience in copper gear manufacturing. This collaborative approach typically results in leaner, lighter, and more cost-effective solutions, while improving manufacturing processes and performance.
Types of Copper Gears We Produce

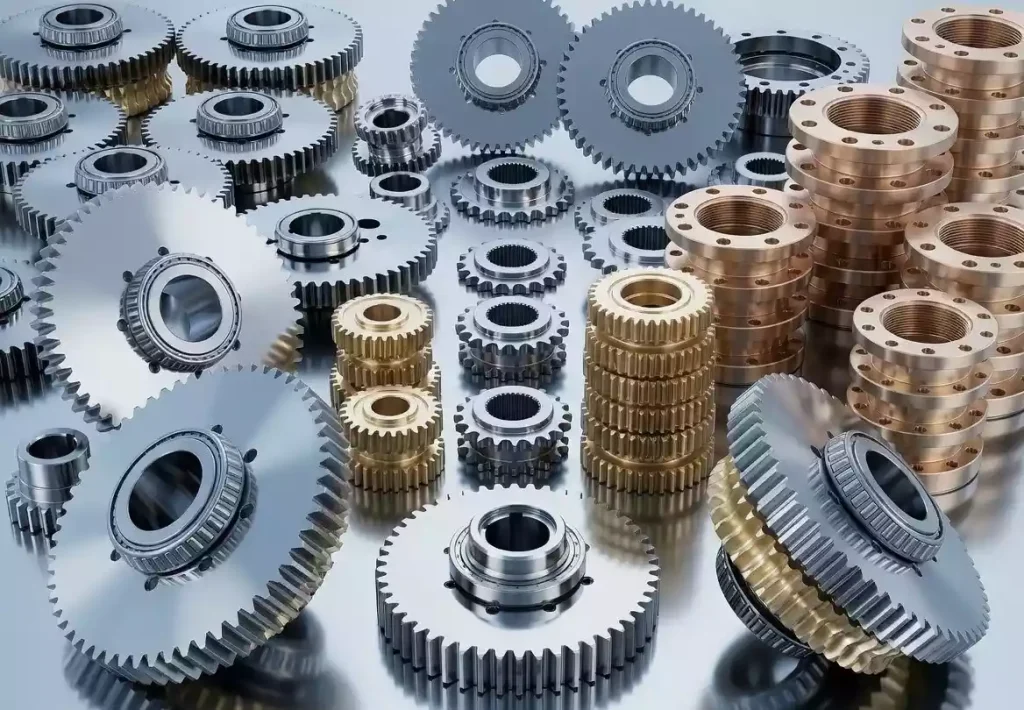

We manufacture copper gears in a wide variety of geometries and sizes, including commercial gears up to 180 inches. Each of these copper gear types is handled by the same engineering team, so you don’t need to coordinate with multiple suppliers for different gear series.
- Spur Gears
- Helical Gears
- Double Helical Gears
- Herringbone Gears
- Bevel Gears
- Spiral Bevel Gears
- Gear Racks
- Worm Gears & Worms
Advantages of Copper Gears
We offer a full range of customized copper gear OEM services, using various copper alloys as raw materials to meet diverse transmission needs. These copper gears, made of copper alloys, offer the following advantages compared to other materials. First, they possess natural self-lubricating properties, effectively reducing friction and wear during operation. Furthermore, they operate smoothly with low noise and excellent vibration damping. Moreover, these gears are rust-resistant and moisture-proof, effectively reducing maintenance costs.
Faster Prototyping and Iteration for Copper Gears
In today’s product development cycle, time-to-market is a critical factor. Therefore, our custom copper gear manufacturing services typically offer in-house design, prototyping, and small-batch production, enabling clients to quickly test and refine their gear designs. Whether modifying tooth profiles or adjusting center distances, changes can be implemented rapidly without associated delays. Elimold’s streamlined production processes shorten product development cycles, helping businesses remain competitive and respond to market demands more quickly.
Our Commitment to Copper Gear Manufacturing
At Elimold, every copper gear project, regardless of order size, is approached with the same rigorous engineering methodology. Before cutting any metal, our team verifies drawings, confirms process routes, identifies critical dimensions, and develops an inspection plan. During production, we conduct in-process checks to identify deviations early. Upon completion, each batch comes with a final inspection record. It is this commitment that earns the trust of numerous original equipment manufacturers (OEM) worldwide, who continue to choose us as their supplier for custom copper gear projects. We never outsource quality decisions. From inquiry to delivery, our engineers are responsible for the entire part, ensuring single-person accountability and faster problem-solving.
Ready To Get Your Custom Copper Gears Into Production?
Upload drawings, a sketch, or a description of the application. Our team reviews the requirements and sends material recommendations and pricing, usually within 4 hours.
Turnkey Copper Gear Manufacturing Services
Our extensive manufacturing capabilities enable us to meet the requirements for copper gear manufacturing in various sizes and batches, including complex parts combinations and stringent tolerances. From gear grinding to complete turnkey projects, we can meet your needs. All products are customized to specific customer specifications, ensuring a perfect fit for every application. With multiple manufacturing departments and production facilities, we can handle both large-volume orders and provide exceptional personalized service to each client. Elimold aspires to be your custom copper gear supplier. With over 15 years of industry experience, we offer reliable custom copper gear manufacturing services.
Reverse Engineering Capabilities for Copper Gears
Even without original specifications, our reverse engineering capabilities allow us to remanufacture copper gears and racks with unparalleled precision. Therefore, we can not only produce custom copper gears of various types to your specifications and machine them according to your part drawings, but also reverse engineer sample parts or collaborate with you to develop custom copper gear designs that meet your performance requirements. Our services cover a wide range of manufacturing and machining industries.
In-house Copper Gear Manufacturing Facility and Advanced Manufacturing Equipment
Elimold is committed to continuous improvement and invests in its Shenzhen, China factory to maintain its leading position in copper gear manufacturing technology. We possess over 170 machines, including CNC bevel gear milling machines, gear hobbing and forming equipment, Coniflex bevel gear machining machines, and rack machining machines, ensuring extremely high precision and minimal tolerances in gear tooth surface machining. Our continuous investment in advanced machinery and cutting tools reflects our unwavering pursuit of quality and innovation.
Other Copper Gear Manufacturing Equipment
Our factory is also equipped with specialized equipment for precision copper gear grinding, including milling centers and hobbing centers. In addition to the Hofler 700 and Hofler 900 for grinding and copper gear manufacturing, we also use the Hofler Helix 400 to enhance the precision grinding capabilities of parallel shaft gears (such as splined gears, as well as helical and spur gears). The last thing our customers want is improperly assembled or malfunctioning finished gears. Therefore, all finished copper gears undergo a rigorous inspection process before shipment to ensure they fully meet your specifications.
Copper Gear Manufacturing Service Types
Choosing the appropriate gear manufacturing process depends on part geometry, annual production volume, tolerance grade, surface finish requirements, and target unit cost. Elimold’s in-house factory, integrating mold making, metal injection molding, and CNC machining, offers six main processes, typically combined into hybrid workflows. Furthermore, because we design and manufacture our own gear molds, we can shorten mold delivery cycles and protect intellectual property. Our adjacent MIM and CNC machining units also support hybrid workflows, such as CNC grinding of sintered gear blanks.
CNC Copper Gear Hobbing
CNC Copper Gear Forming
Precision Copper Gear Grinding
Powder Metallurgy (PM) Copper Gear Manufacturing
Metal Injection Molding (MIM) for Miniature Copper Gears
Wire EDM and Rapid Prototyping
Copper Gear Manufacturing Capabilities and Dimensions
Elimold’s general copper gear manufacturing capabilities range from 2.00 inches to 180.00 inches in diameter, with a maximum diametral pitch of 1 inch, a maximum module of 25 inches, and a maximum round pitch of 3.00 inches. Our services also include precision turning (diameters from 1/8 inch to 8 inches) and milling (maximum size 8 inches x 20 inches), with gear machining capabilities ranging from 16DP to 200DP (modules from 0.5 to 3) and worm gear machining capabilities ranging from 16DP to 72DP, all with tolerances within +/- 0.0001 inches. We also offer custom shafts with diameters ranging from 1/32 inches to 1-1/2 inches, with tight tolerances and straightness up to 0.0003 inches per inch. We understand the importance of your gear needs and look forward to becoming your copper gear manufacturing partner.
Quality Assurance
Elimold is committed to quality. Our quality management system covers every aspect of the gear project, from quotation review to final inspection. We provide comprehensive work instructions, calibrated measuring equipment, and a complete batch traceability system for industries with extremely high repeatability requirements. In addition, we implement continuous production monitoring and in-house mold maintenance. We use Red Line gear inspection instruments to identify defects, test hardness and density, and employ computerized process control to avoid human error. We are ISO 9001:2015 certified, comply with ISO 13485 standards, and meet AGMA quality number requirements.
Quality Control and Certification
All gear products must pass established inspection standards before leaving Elimold. Our metrology laboratory is equipped with specialized gear measuring instruments and is staffed by inspectors trained in AGMA and ISO gear standards.
In-House Gear Metrology Lab
Our lab includes a CNC gear measuring center, coordinate measuring machine (CMM), hardness testers, surface roughness testers, and optical comparators. Tooth profile, lead, pitch, runout, and backlash are measured against customer drawings.
Material Certification & Traceability
Each production lot is accompanied by material certificates, heat-treatment reports, and certificates of conformance. Mill test reports and plating certifications are available on request.
Statistical Process Control (SPC)
Critical dimensions are monitored during production with Cpk targets greater than 1.33. First-article inspection reports and in-process inspection records are standard deliverables for production orders.
Heat Treatment & Surface Finishing
We manage carburizing, induction hardening, nitriding, black oxide, zinc plating, nickel plating, passivation, and PVD coatings through qualified partners, all with full documentation.
Strict Quality Inspection
Heat Treatment Testing
UT & MT Testing
Meshing Testing
Accuracy Testing
Dimension Inspection
Material Inspection
Secondary Operations for Gears
After primary cutting or molding, gears often require secondary operations to meet final specifications. Elimold manages these operations in-house or through qualified partners, with full inspection and documentation.
Shaft & Bore Finishing
Reaming, honing, grinding, and wire-EDM finishing for tight bore tolerances and precise shaft fits.
Surface Hardening
Carburizing, nitriding, induction hardening, and carbonitriding to improve wear resistance and fatigue life.
Coatings & Platings
Black oxide, zinc plating, nickel plating, electroless nickel, PVD, DLC, and passivation for corrosion or wear protection.
Grinding & Honing
Profile grinding, generating grinding, and honing for noise reduction and precision improvement.
Marking & Traceability
Laser marking, dot-peen marking, and serialization for part traceability in medical, aerospace, and automotive applications.
Advantages of Precision Copper Gear Manufacturing Services
Elimold is a leader in high-end precision copper gear engineering, production, and manufacturing process automation. This makes us your preferred expert for assistance with specifications, application goals, and precision component installation. The value of our custom OEM copper gear services lies in extending the lifespan of existing machinery and providing greater flexibility to optimize machine operation as business needs evolve. Elimold’s high-precision custom copper gears offer advantages such as long service life and low maintenance costs, and help equipment achieve optimal performance by ensuring high-precision indexing, transmitting high torque values, and minimizing downtime during power source reversals.
Industries We Serve
Elimold provides copper gears for industries with extremely high requirements for precision, reliability, and documentation. Our quality system supports first-article inspection, material certification, and statistical process control, applicable to all of these industries. Each industry has its unique performance requirements, and our rigorous process selection process ensures that the appropriate materials, heat treatments, and surface treatments are chosen for the specific application.
FAQ
We produce helical gears, spur gears, bevel gears (straight, spiral, and hypoid gears), worm gears, as well as sprockets, hubs, splines, and gear shafts. We have eight gear machining machines, enabling in-house cutting, hobbing, and grinding of gears.
The MOQ depends on the manufacturing process. The MOQ for machined copper gears is 100 pieces; powder metallurgy and metal injection molding (MIM) copper gears typically require orders of 5000 pieces or more to justify the mold. For prototyping, wire EDM or CNC milling can be used for single-piece orders.
Prototype copper gear manufacturing takes 5-10 working days. Regarding production cycles, CNC hobbing of copper gears takes 2-4 weeks, grinding of copper gears takes 3-5 weeks, and powder metallurgy or metal injection molding (MIM) takes 4-6 weeks. Mold development requires an additional 2-4 weeks (for powder metallurgy and MIM processes).
We perform carburizing, induction hardening, nitriding, solid hardening, and precipitation hardening processes through qualified heat treatment partners, all of whom have full certifications.
Prototype copper gears typically meet ISO 1328 grade 6-8 standards. Precision ground copper gears can achieve grade 4-5 standards. Final tolerances depend on dimensions, material, heat treatment, and process selection.
We can provide not only light assembly services, but also shaft press-fitting, bearing installation, lubrication, and functional testing of gearboxes and drive modules. We can also customize and manufacture other components for complete sub-assemblies.
We strongly recommend prototyping new designs, especially for high-volume production. Prototyping can be done using methods such as wire EDM, CNC milling, or soft molds, depending on the geometry and quantity.
Both are possible. If you provide drawings, we will manufacture the copper gear to specifications. If you do not have drawings, please provide a worn or damaged gear, and we will reverse engineer it, measuring the number of teeth, pitch, pressure angle, and bore diameter, and then cut a matching replacement copper gear.
Both. Our 140,000 square foot facility is large enough to meet the needs of high-volume production, yet flexible enough to process individual replacement copper gears. Please specify the quantity when inquiring.
Copper gears are packaged in corrosion-resistant VCI bags, with foam lining, or in compartmentalized pallets to prevent damage to the gear teeth and rust during transport. Custom labeling and barcode services are available.
Your Partner For Custom Copper Gear Manufacturing
Send a drawing, a sketch, or a sample gear. We will review it and send recommendations and pricing, usually within 4 hours.
