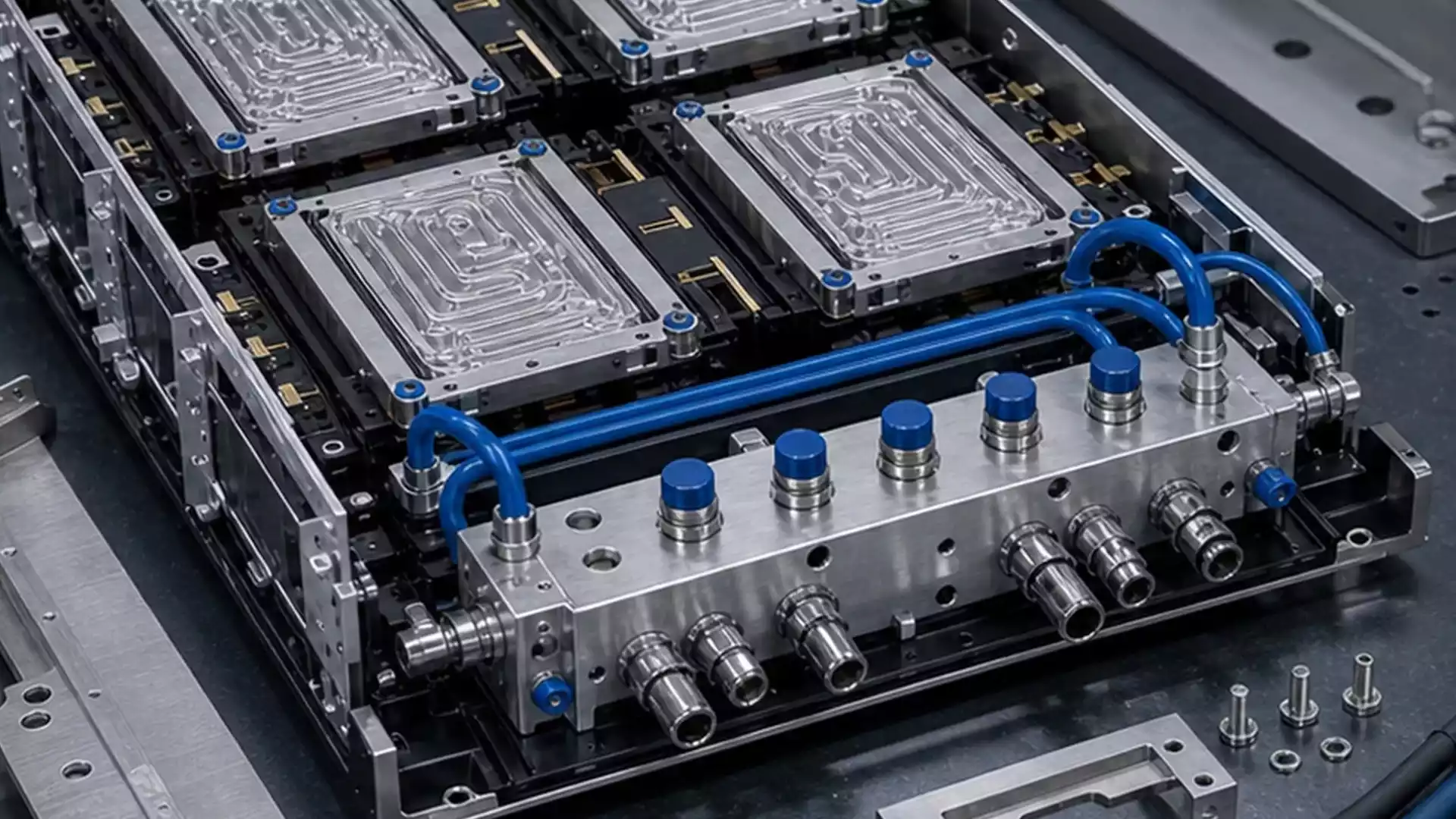

Liquid Cooling Components CNC Machining
Elimold manufactures precision CNC-machined aluminum, copper, and stainless steel components for liquid cooling systems, thermal management equipment, and advanced data center applications. We meet stringent tolerance requirements, provide clean sealing surfaces, and offer consistent batch quality. Contact us now for a quote.
Custom CNC Liquid Cooling Component Machining Supplier
Are you choosing the right supplier for your custom CNC liquid cooling component machining project? In many cases, the performance of liquid cooling components directly affects the product’s lifespan and reliability. Traditional precision machining processes for liquid cooling components suffer from low accuracy, limited material selection, and long delivery cycles, making it difficult to meet high standards. Dimensional errors or uneven heat dissipation can lead to overheating, malfunctions, and ultimately, component scrapping, increasing costs. Our CNC liquid cooling component machining services offer high-precision machining, superior material selection, and fast delivery, eliminating your concerns about the performance of your custom liquid cooling components.
We Solve the Engineering Challenges of CNC Machining Liquid Cooling Components
From prototype verification to production requirements, the Elimold team helps engineers overcome the challenges of CNC machining thermal management components.
Complex Internal Geometry
Solving the machining challenges of internal channels, grooves, and precision features in cooling components.
Strict Dimensional Requirements
Critical surfaces, mounting locations, and sealing areas require precise machining control to ensure reliable assembly and performance.
Material and Process Selection
Choosing appropriate materials, tools, and machining methods helps balance thermal performance, strength, weight, and manufacturing costs.
Leakage Risk Control
Sealing areas, threaded interfaces, and O-ring grooves require precise machining to reduce the risk of leakage during pressure and coolant flow testing.
High-Precision Tolerance Features
Critical diameters, shoulders, and groove dimensions require consistent tolerance control to ensure consistent connector assembly and sealing.
Complex Flow Geometry
Internal channels, threaded ports, and connector interfaces must be machined cleanly without sharp burrs to avoid affecting coolant flow.
Transition from Prototype to Production
Elimold provides ongoing quality and manufacturing feedback support for liquid cooling components from early prototypes to repetitive production.
Batch Consistency
Once the prototype is approved, the customer requires consistent production quality across multiple batches of the AI-powered cooling system assembly.
Certified Liquid Cooling Component CNC Machining Services
Our custom liquid cooling component CNC machining services offer you unlimited design freedom. Whether it’s complex nonlinear fluid channels or simple linear channels, they can be easily achieved. Design changes are convenient and cost-effective due to the elimination of mold investment. Furthermore, this method allows for the integration of installation functions and interfaces in a single setup. As a certified liquid cooling component CNC machining service provider of ISO 9001:2015, AS9100:D, and IATF 16949:2016, Elimold provides comprehensive custom liquid cooling component machining services with a robust quality control system, ensuring your products are produced on time, on budget, and to specifications, with full traceability and compliance throughout the machining process.
DFM Support Before Production of CNC Machined Liquid Cooling Components
Before machining, our engineering team reviews the customer’s 3D models, 2D drawings, sealing structures, and tolerance requirements to reduce production risks and improve manufacturability. A clear DFM analysis helps reduce quotation delays, machining errors, and quality risks. From CAD file review to CNC milling, inspection, finishing, and shipping, Elimold ensures every step is feasible and based on drawings.
Thermal Interface
- Contact-face flatness or profile
- Surface roughness and damage limits
- Wall thickness and material condition
- Coating or plating buildup
Fluid Circuit
- Channel width, depth, and intersections
- Port and thread location
- Burr and particle control
- Flow and pressure-drop criteria
Sealing and Assembly
- Groove geometry and sealing lands
- Cover and manifold alignment
- Fastener pattern and thread quality
- Leak and proof-pressure tests
Unlocking Design Freedom for Liquid Cooling Components with CNC Technology
CNC machining offers unprecedented freedom in designing coolant flow paths. It can create serpentine channels with 180-degree turns. This maximizes channel length within a given area, thereby improving heat dissipation. We believe that reliable CNC production of liquid cooling components requires more than just maintaining nominal dimensions: material traceability, thermal stability, workpiece clamping, channel integrity, surface condition, leak testing, and documented inspection must all operate as a cohesive, integrated control system.
Tailor-made High-Precision Machining Solutions for Your Products
Elimold’s in-house custom liquid cooling component CNC machining division delivers lean manufacturing efficiency for your projects. Our comprehensive custom liquid cooling component machining services, coupled with state-of-the-art CNC equipment, ensure the highest precision and repeatability. We excel in high-precision, high-tolerance liquid cooling applications. Manufacturing these tiny, intricate channels requires specialized expertise. While various options are available, each focuses on different aspects of cost, speed, and performance. We can machine grooves from 0.2 mm to 1.0 mm in width and up to 10:1 aspect ratio, turning designs into hardware within days.
Custom CNC Machining Cooling & Liquid Management Components
CNC machined components for AI server cooling systems, liquid cooling infrastructure and advanced thermal management equipment.
Liquid Cooling Cold Plates
Cooling Manifolds
Liquid Cooling Connectors & Fittings
Cooling Enclosures & Mechanical Parts
Prototype Thermal Components
Quick Disconnect Couplings
Liquid Cooling Manifold Blocks
Cooling Plate Connectors
Threaded Adapters
Hose Connectors
Custom Fluid Connectors
Cover Joining
Professional Custom Liquid Cooling Component CNC Machining Manufacturer
As a professional Chinese CNC machining manufacturer of liquid cooling components, we possess extensive capabilities in manufacturing custom liquid cooling CNC components. We are equipped with imported Japanese Star CNC Swiss-type lathes, German CNC lathes, imported machining centers, grinding machines, cleaning machines, and other production equipment. All our testing instruments are imported from Japan and Germany. With years of professional experience, Elimold can support a wide range of CNC liquid cooling component machining projects, from single-piece prototyping and pilot production to mass production and remanufacturing. Whether you are validating a new design or sourcing mature production parts, we can manufacture directly from your CAD files and drawings.
Do You Have Similar Needs For CNC Machined Liquid-cooled Components?
Please upload your 3D model and drawings. Elimold can review the structure, materials, tolerances, and surface finish requirements of the liquid-cooled components before providing a quote, and you can get a free manual quote within 4 hours.

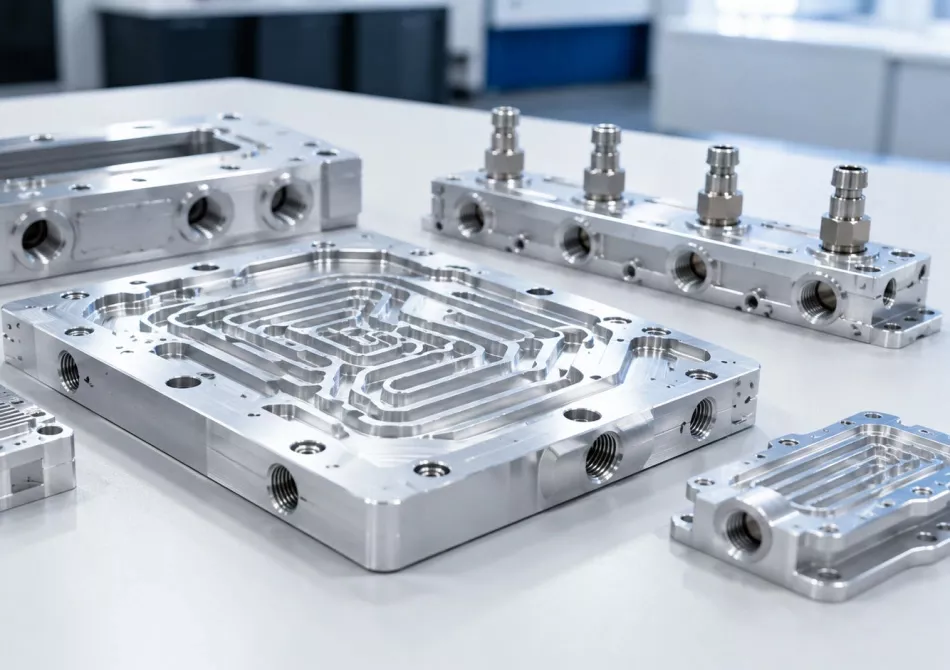

Developing Precise Budgets for CNC Machining of Custom Liquid Cooling Components
Tolerances on CNC machining drawings for custom liquid cooling components must be translated into a process budget that considers machine tool performance, tool runout and wear, fixture repeatability, temperature, material relaxation, cleaning, coating, and measurement uncertainties. Machine tool positioning specifications alone are insufficient to guarantee the final product’s quality. Elimold’s engineers and manufacturing team can select and configure the appropriate machine tool based on the complete geometry. Linear scales, closed-loop control, probes, and compensation functions can improve accuracy, but their performance should be validated through first-piece machining results and production data. Critical features require sufficient process margins to prevent normal deviations from consuming the full tolerance.
CNC Machining Process for Liquid Cooling Components
Each liquid cooling component is manufactured through CNC turning, milling, threading, deburring, and inspection processes. Precision machining, connection checks, sealing design, and application-based inspection are typically required to achieve accurate sealing performance and consistent production quality.
CNC Machining
5-Axis Machining
CNC Turning
CNC Milling
Thread Machining
O-Ring Groove Machining
Deburring & Cleaning
FSW / Vacuum Brazing Review
Inspection & Packaging
Tooling and Fixture Design Based on Functional Benchmarks
We can customize fixtures for custom CNC machined liquid-cooled components, positioning them according to drawing benchmarks. This facilitates tool and coolant access and securely clamps the workpiece, preventing bending of contact or sealing surfaces. Furthermore, our team can manufacture liquid-cooled components using vacuum clamps, soft jaws, support pins, sacrificial materials, low-deformation clamps, or specialized pallets, depending on the workpiece geometry and quantity. If the cold plate requires multiple clamping operations, reliable positioning features should be included, and the relationship between components after each clamping operation should be checked. After releasing the fixture and allowing the component to stabilize, flatness, contour, and critical port positions should be rechecked as needed.
Start Small-scale, Scaling UP Only After Design Completion
Many customers order small quantities of custom CNC liquid cooling components before production to test assembly fit, material properties, tolerance risks, surface finish, and functionality. Once the design is confirmed, we can support mass production and repeat production.
- Prototypes of integrated machined liquid cooling components for design verification.
- Pilot production and mass production for testing, verification, and initial build.
- Production CNC machining for liquid cooling parts.
- Support for repeat orders with stable process and inspection records.
- Engineering review before machining to reduce avoidable production risks.
Materials We Machine
Liquid cooling components may require different materials depending on the type of coolant, pressure, corrosion resistance, weight targets, and assembly environment. Elimold supports CNC machining of brass, aluminum, stainless steel, and engineering plastics.
Aluminum
6061, 7075 and other aluminum alloys for lightweight cooling plates, housings and structural components.
Copper
Copper alloys for applications requiring high thermal conductivity and efficient heat transfer.
Stainless Steel
Corrosion-resistant components for demanding industrial cooling environments.
Engineering Plastics
PEEK, PTFE and other plastics for insulation and specialized applications.
Surface Finishing and Finishing Options
To meet the mechanical, thermal, and environmental requirements of CNC-machined liquid-cooled components, Elimold employs a range of sophisticated heat treatment and surface finishing processes, tailored to the performance requirements of each component. These include:
Heat Treatment
Enhancing strength, hardness, and thermal stability, particularly suitable for fasteners, chassis supports, and high-stress components.
Passivation
Improving corrosion resistance and removing surface impurities, extending service life in airflow and humid environments.
Electropolishing
Creating a smoother, contamination-free surface, ideal for electromagnetic interference shielding components and components critical to aerodynamics.
Coatings and Plating
Including nickel plating for conductivity and black anodizing for corrosion protection, heat resistance, and visual identification of parts.
Deburring and Polishing
Ensuring precise tolerances, surface finishes, and assembly compatibility in high-volume production processes.
Leakage, Pressure, Flow, and Thermal Testing
The dimensional conformity of CNC-machined liquid-cooled components does not in itself demonstrate the performance of a fluid system. Our testing protocols can clearly specify the medium, pressure or vacuum level, holding time, permissible leakage, temperature, cleanliness, fixtures, calibration, and acceptance criteria.
Leakage Testing
Pressure decay method, bubble method, tracer gas method, or helium method can be selected based on the specified leakage rate sensitivity.
Pressure Testing
Validation or burst testing requires controlled safety procedures and customer-specified limits.
Flow Testing
Pressure drop and flow balance can identify limitations, faulty pathways, or residual debris.
Thermal Testing
Performance validation is part of an agreed-upon product or system qualification plan and requires clearly defined boundary conditions.
Advanced Testing for CNC-Machine-Machined Liquid-Cooled Components
Elimold offers combined testing for CNC-machined liquid-cooled components, in addition to standard inspections. For example, combining thermal cycling with pressure cycling more accurately simulates real-world operating conditions. This process can uncover defects that might not be apparent under hydrostatic pressure alone, ensuring a more robust and reliable final product. For vacuum-brazed cold plates, pneumatic testing using a helium leak detector is standard practice. Compared to hydrostatic testing, pneumatic testing offers higher sensitivity in detecting micro-leakage. While destructive, burst pressure testing is crucial for validating final design margins during critical prototyping phases.
Quality Assurance for CNC-Machined Cooling Components
Elimold employs rigorous CNC machining processes to ensure that cooling components meet dimensional, material, and assembly requirements. Each project is supported by inspection procedures and engineering documentation.
Dimensional Inspection
Critical dimensions, flatness and tolerance requirements are verified using precision measurement equipment.
CMM Measurement Support
Coordinate measuring equipment helps ensure complex geometries and critical features meet drawing specifications.
Material Certification
Material certificates and traceability documentation are available for aluminum, copper and stainless steel components.
Surface Finish Verification
Surface treatments and finishing requirements are inspected to support functional and appearance requirements.
Thread Verification
Internal and external threads are checked to support stable connector assembly with matching fittings, ports or cooling system parts.
Sealing Surface Check
O-ring contact areas and sealing faces are visually checked to avoid burrs, scratches or tool marks that may affect sealing performance.
O-Ring Groove Control
Groove width, depth, edge condition and corner details are treated as key features for connector sealing and repeatable assembly.
Burr & Cleanliness Review
Edges, internal channels and threaded areas are reviewed to reduce assembly issues and support clean coolant flow paths.
Inspection Reports
Dimensional inspection reports can be provided for critical features and batch traceability when required by the project.
Applications We Support
Elimold supplies precision-machined components for cooling equipment manufacturers, engineering teams and advanced electronic systems.
AI Data Center
Semiconductor Equipment
Power Electronics
EV Systems
Industrial Automation
Data Center Cooling Equipment
Liquid Cooling Systems
High Performance Computing
Electronic Thermal Management
FAQ
Liquid cooling components direct heat from electronic devices, power modules, and precision equipment into controlled coolant flow paths. These components are also suitable for AI servers and data center equipment, where precision-machined thermal interfaces, cooling housings, and structural integration are integral parts of the assembly. They are used in active cooling systems where air cooling or passive radiators cannot meet heat dissipation requirements.
Common components include cold plate bases and covers, manifolds, distribution blocks, pump housings, connector bodies, quick-disconnect interfaces, brackets, and seals.
Common materials include 6061 aluminum alloy, 7075 aluminum alloy, brass, 304 stainless steel, and 316L stainless steel. The optimal material selection depends on strength, weight, corrosion resistance, coolant compatibility, and cost.
Elimold can machine liquid-cooled components with numerous internal flow characteristics using CNC milling, turning, deep hole drilling, and 5-axis machining. For very complex geometries, a Design for Manufacturing (DFM) review is recommended before production.
Not necessarily. Our inspection follows customer specifications and approved control protocols. Leak-critical characteristics may require full verification, while lower-risk dimensions can be handled with approved sampling strategies.
Our process flow for manufacturing custom CNC-machined liquid-cooled components may include CNC machining, precision channel machining, cover plate joining, application-based friction stir welding or brazing review, assembly, and leak testing.
Elemold supports custom CNC-machined cold plates, liquid-cooled plates, heat manifolds, and machined thermal components based on CAD drawings and application requirements.
Depending on the project scope, our inspections for CNC machined liquid cooling systems may include dimensional checks, flatness checks, surface checks, pressure testing, and leak testing.
Our primary method for preventing leaks is precision machining of the seals: Swiss-type turning ensures precise alignment between the valve seat and the seal, and O-ring grooves and mating surfaces are machined to a mirror finish Ra < 0.2 μm to eliminate micro-gaps that could lead to leaks. If you require pressure or helium leak testing, we can perform it according to your specified methods and acceptance criteria—please specify the test medium, pressure, holding time, and allowable leakage rate required for your system.
Sealing performance is considered a critical characteristic. We machine coupling bodies and valve components with micron-level concentricity and ensure precise alignment between the valve seat and the seal, resulting in smooth connections and zero-leakage performance. For O-ring grooves and mating surfaces, we achieved a mirror-polished finish with Ra < 0.2 μm and verified the groove geometry to match the O-ring cross-section and hardness during the DFM (Design for Manufacturing) process to achieve the correct compression ratio.
We machine hydraulic and fluid interfaces strictly according to your drawings/specifications. During the Design for Manufacturing (DFM) phase, we review the thread engagement length and generally recommend that the thread depth not exceed 2 to 2.5 times the nominal diameter (especially in stainless steel) to balance strength, machining cycle time, and tapping reliability. We use Brother and Mazak machining centers for rigid tapping. If your design requires common liquid-cooled standards such as G1/4 (BSPP) or NPT, we will machine according to your thread specification and required mating grade.
Engineers should consider manufacturability early in the design phase to reduce costs and improve reliability.
- Avoid unnecessary sharp internal angles.
- Sufficient wall thickness should be provided around coolant passages.
- Clearly define the required surface finish for seals.
- Clearly define thread standards and inspection requirements.
- Confirm pressure testing requirements before production.
- Use standard O-ring groove dimensions whenever possible.
- Please provide 3D STEP files and 2D drawings for an accurate quote.
Need Custom CNC Machined Liquid Cooling Components?
Please send us your 3D files, 2D drawings, material requirements, and quantities. An Elimold engineer will review your project and provide feedback within 4 hours.
