Custom Lead Screw
Elimold offers custom lead screw design and manufacturing services, including precision thread design, material sourcing, coating, and expert engineering support. All products are made in China to ensure durable performance and help you tailor your sports system. Contact us now for a free quote.
Tailor-made Lead Screw Manufacturing Solutions, Designed Specifically For Your Unique Applications
At Elimold, we offer more than just meticulously crafted off-the-shelf components; we provide professional custom lead screw manufacturing services to precisely address your design challenges. Our products are manufactured in Shenzhen, China, and our team will work closely with you to determine the thread shape, lead, materials, coatings, end machining, and assembly methods, ensuring your motion system performs at its best from day one. Contact us now for a quote.
Reduce Costs and Speed Up Delivery
At Elimold, Design for Manufacturing (DFM) services are a vital part of our business operations. Early planning and consideration of optimal manufacturing processes can reduce product costs and, in most cases, shorten lead times. Get us involved early, and the Elimold team can help you gain a real competitive edge. Together, we’ll improve the manufacturability of your products, helping you save costs and speed up delivery. Furthermore, we offer first-article (prototype) inspection for your approval, so you can rest assured we’ll complete it as quickly as possible. If you have any questions about our engineering capabilities, processes, or pricing, please email us.
Custom Lead Screw Solutions & Reverse Engineering
The Elimold team manufactures all types of lead screws and matching nuts to meet diverse performance requirements. Our in-house machining workshop ensures rapid delivery of lead screws and nuts, facilitating seamless installation for our customers. Working closely with our clients to provide finished products not only reduces scrap rates but also ensures consistent lead screw and nut fit tolerances every time. Leveraging our exceptional machining capabilities for numerous clients, we deliver high-performance journal concentricity products regardless of diameter. Elimold’s strong capabilities in reverse engineering linear products become particularly important when original drawings are unavailable. This ability ensures we can provide practical solutions to a variety of challenges.

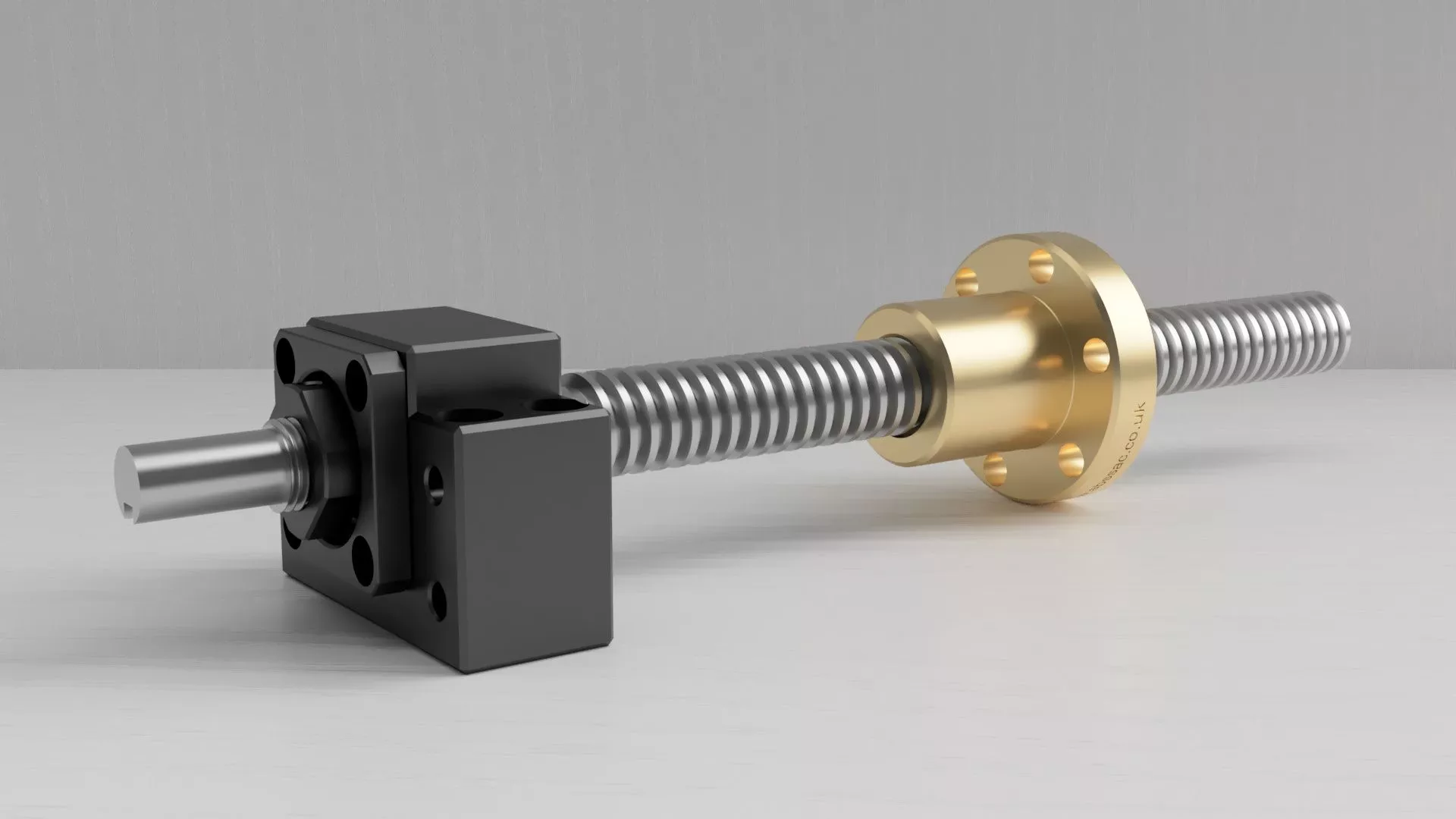

Precision Lead Screw Manufacturing
Standard parts and dimensions are not suitable for all situations. Therefore, we focus on creating special profiles and unique custom parts. Whatever your needs, our team can provide efficient and fast solutions to help you complete your tasks easily. What kind of lead screw assembly do you need? We can produce single parts and prefabricated assemblies in a variety of machinable materials, with thread types including single-start and multi-start threads, and machining methods including spinning, milling, or cutting. We can also perform any end machining, tempering, or coating treatments according to your requirements. Welcome to learn about the products and services we can manufacture.
- All
- Gallery Filter
Gallery Item Name
Lorem ipsum dolor sit amet, consectetur adipisicing elit. Quidem, provident.
Gallery Item Name
Lorem ipsum dolor sit amet, consectetur adipisicing elit. Quidem, provident.
Gallery Item Name
Lorem ipsum dolor sit amet, consectetur adipisicing elit. Quidem, provident.
Gallery Item Name
Lorem ipsum dolor sit amet, consectetur adipisicing elit. Quidem, provident.
Gallery Item Name
Lorem ipsum dolor sit amet, consectetur adipisicing elit. Quidem, provident.
Gallery Item Name
Lorem ipsum dolor sit amet, consectetur adipisicing elit. Quidem, provident.
Complete Supply Chain Control And In-house Manufacturing Facilities
Elimold possesses deep expertise in custom lead screw products and has a long-standing commitment to solving complex engineering challenges. Application engineers are ready to work hand-in-hand with partners, providing CAD models, prototypes, and design feedback from concept to production. We offer an ISO-certified quality system and consistent traceability covering materials, coatings, and processing. When your design requires special motion beyond standard options, trust Elimold’s engineering team to provide you with custom lead screws that offer high precision, durability, and seamless integration—all designed for your success.
World-Class Precision Lead Screw Manufacturing
Elimold boasts a diverse team of engineers who combine deep industry knowledge with decades of experience and collaborative spirit to meet the linear motion needs of every application. Let’s discuss the challenges you’re currently facing with custom lead screw products. Perhaps it’s a complex technical problem, or perhaps it’s a more business-oriented issue. We hope to help you overcome these challenges by finding the solution best suited to your specific needs. We want you to be confident that you’ve found the right custom lead screw manufacturing partner. Please see the types of lead screw products we can manufacture. Elimold is committed to bringing more advanced lead screw manufacturing solutions to the market, and our team is always committed to innovation, developing and manufacturing linear motion components, mechanical sub-components, and custom systems to meet our customers’ application and product requirements and specifications.

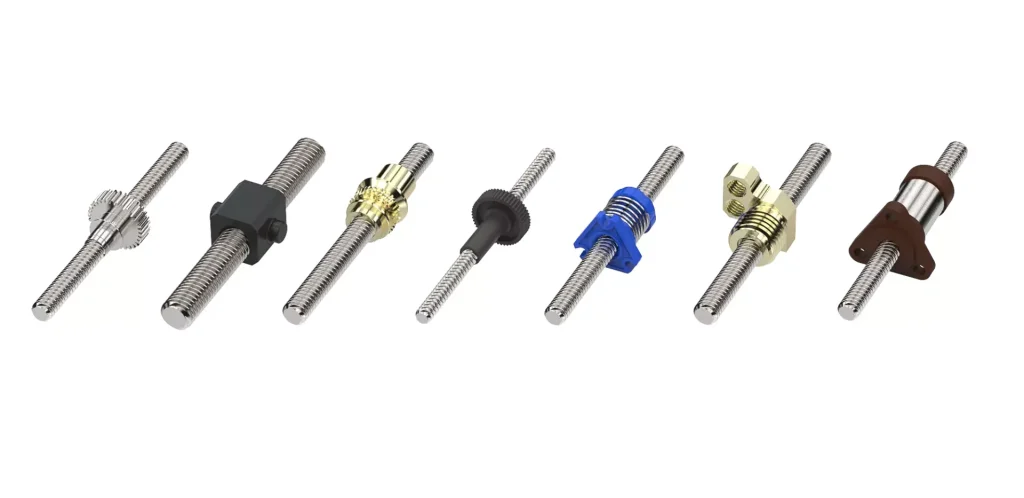

Lead Screw Types
Trapezoidal Lead Screws
ACME Lead Screws
Metric Lead Screws
Anti-backlash Nut Lead Screws
Mini Lead Screws
Bi-directional Lead Screws
Acme Lead Screws
Square Lead Screws
Trapezoidal Lead Screws

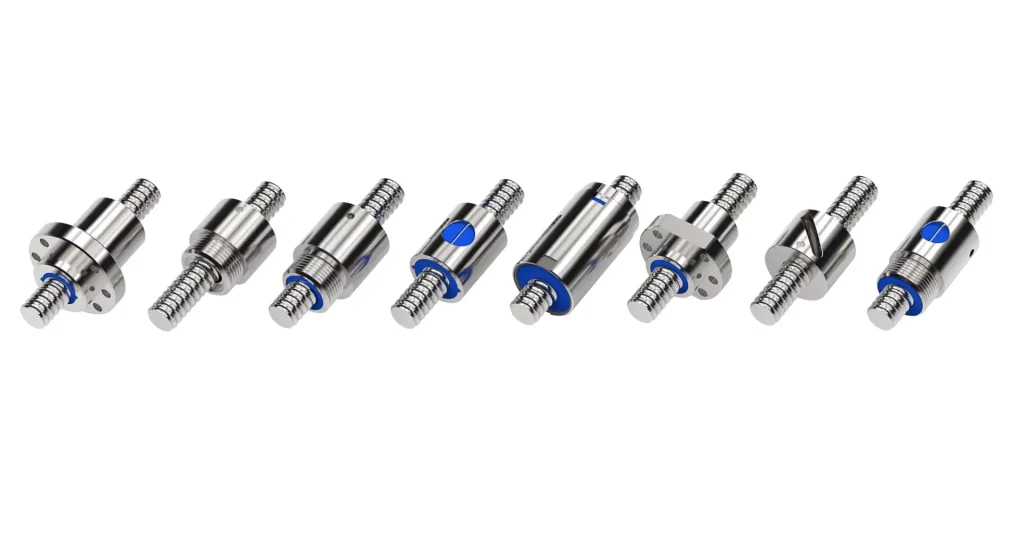

Ball Screws
Buttress Lead Screws
Thread Rolling Lead Screws
Turnkey Lead Screw Assembly Manufacturing Service
We offer complete turnkey lead screw assembly manufacturing services to your specifications. We can also assemble your custom products ourselves, saving you assembly time and manufacturing costs. Consider outsourcing the manufacturing of your complete lead screw assembly to Elimold. We will help you save valuable time and streamline your logistics planning. Simply submit an inquiry with drawings, and we will respond with a competitive quote for your approval. Contact us now!
Custom Lead Screw Manufacturer
With over 20 years of professional experience in the production and R&D of various lead screw products, Elimold’s experienced engineers and skilled workers form a professional technical team ready to meet your needs. We excel in flexible small-batch production, making us ideal for customers with small-volume purchases. All our products meet international quality standards, and we pride ourselves on providing excellent after-sales service. As a trusted lead screw manufacturer, our expertise includes creating custom lead screw thread configurations and providing custom lead screw end machining services to meet specific requirements. We focus on the production of custom lead screws and are one of the leading custom lead screw manufacturers in the industry.
Custom Lead Screw Production Capacity
We have multiple factories in Shenzhen, China, equipped with advanced equipment, enabling us to provide a full range of production services for the lead screws and related components you need. From grooving and rolling to trimming and upsetting, we can handle it all. In addition, we offer a team of engineering and subject matter experts ready to assist you with design, tooling, prototyping, and performance testing. Orders range from single lead screws to thousands of lead screws, neither too large nor too small.
Lead Screw Manufacturing Precision
Lead Screw Manufacturing Dimensions
Custom Lead Screw Assembly Service
Elimold offers a complete turnkey lead screw assembly manufacturing service to meet your specific specifications. We can also assemble your custom products in our factory, saving you assembly time and manufacturing costs. Our custom lead screws and nuts offer great flexibility in materials and geometry, helping you find the “just right” solution. We focus on producing high-quality custom lead screws to meet our customers’ specific needs. Our extensive customization options ensure that every lead screw performs optimally in your application.
Need The Right Lead Screw Manufacturing Solution?
Work with our team of technical experts to understand your application needs in detail, ensuring we find the ideal lead screw manufacturing solution that best meets your performance requirements and budget. Contact us now for a quote.
Custom Lead Screw Supplier
Our lead screws and matching lifting and safety nut kits include all necessary turning, milling, and facing processes, as well as surface finishing and hardening. We pride ourselves on providing customized lead screw manufacturing solutions to meet the unique needs of each customer. We utilize the latest technology and equipment to ensure all products meet or exceed industry standards. Regardless of the size or complexity of your project, we are committed to providing reliable, high-quality solutions that meet your needs and exceed your expectations. Contact us today to learn how we can help you with your gear drive needs.
Comprehensive Lead Screw Manufacturing Services
As a custom lead screw manufacturer, every Elimold product is tailored to your specific needs and expectations. Our team can produce complete lead screw products based on your engineering drawings, including end machining, heat treatment alloying, and various electroplating processes. If needed, we can also produce nuts to match any precision lead screw. Depending on assembly requirements, we can manufacture lead screws from a variety of materials and alloys, with diameters up to six inches. Furthermore, threads can be rolled or ground according to part geometry or tolerance requirements.
One-Stop Lead Screw Manufacturing Service
Elimold boasts a strong capability in custom lead screw manufacturing, encompassing a wide range of materials, machining and surface treatment options, and optional certifications. We produce various lead screw types, covering diverse head and thread combinations, size ranges, and end applications, and can provide additional design, die-making, and prototyping support upon request. Furthermore, we even offer special thread styles and configurations. Special designs or applications are no problem, as Elimold has produced new lead screw products in various sizes and pitches. Please request a quote to send us your specifications or configurations for custom parts.
Lead Screw Forming Process
The manufacturing of lead screws at Elimold primarily involves three key processes: cold extrusion, cutting, and grinding.
Cold Extrusion

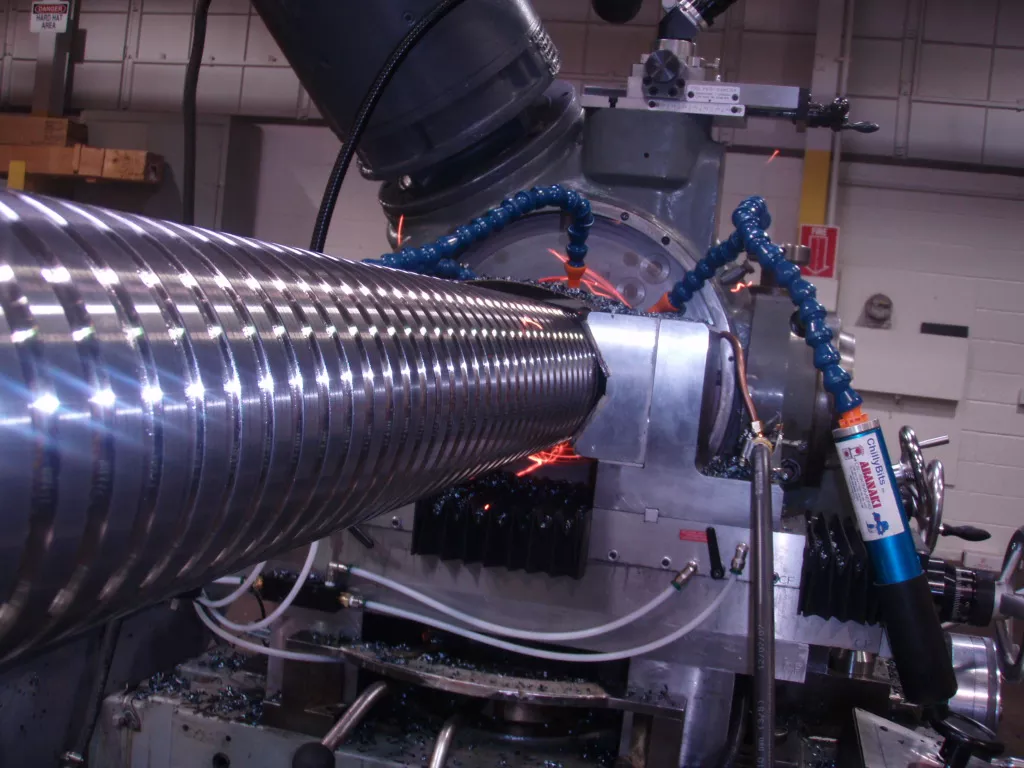

Cutting
Grinding
Quality Inspection
Elimold’s quality management team conducts microscopic inspections of surface finish at every stage of the manufacturing and coating process. We have two dedicated testing labs to determine the high-performance characteristics of our products. One lab is dedicated to testing load and lifespan, and has tested components that have driven over 2,500 miles without failure; the other is equipped with soundproofing facilities for analyzing noise levels. Furthermore, we can inspect the entire length of the screw (up to 20,000 points within 72 inches, while competitors inspect only one point every 6 inches for the same length). Lead accuracy is 0.003 inches/foot (76 microns/300 millimeters), three times better than the industry standard.
High Precision Lead Screws Material
In Elimold lead screw supplier, High precision lead screws can be made from a variety of materials, depending on the application and required properties. The choice of material will depend on factors such as the load capacity, speed, accuracy, and environmental conditions of the application.Some common materials used for lead screws include:
Stainless steel
This material is commonly used for High precision lead screws because it is corrosion-resistant and has good strength and durability. SS303(1.4305), SS304(1.4301), SS316, SS316L, SS440C, SUS631
Carbon steel
This material is less expensive than stainless steel and is often used for applications that do not require high corrosion resistance. Q235, C45, 40Cr, A3, S55C, 42CrMnTi, C45Pb
Bronze
This material is used for High precision lead screws that require high wear resistance and low friction.
Aluminum
This material is lightweight and has good corrosion resistance, but is not as strong as other materials and is typically used for low-load applications.
Plastics
Various plastics, such as acetal, nylon, and PEEK, can be used for high precision lead screws in applications that require low friction and high wear resistance.
Temperature-Controlled Internal Coating
This independently developed, customized coating process and equipment improves surface finish and eliminates screw coating peeling. The coating reduces the coefficient of friction, improves screw efficiency, and extends service life. Each screw is inspected using a digital microscope to ensure the coating surface is free of peeling or pitting.
Available Surface Coating
- Zinc-plated
- Nickel Plated
- Hard Chromium Plated
- Fluorine Coated
- Tungsten Disulfide
- Black Chorme Plated
- Teflon Coating
- Passivation
- Electropolishing
Industries We Service
We have decades of experience meeting the stringent regulations and certifications for the automotive, aerospace and medical device industries, which serve as benchmarks for all of the products we manufacture.
Aerospace & Defense
Automotive
Machine Tool
Agriculture
Power Generation
Material Processing
FAQ
A lead screw is a mechanical device that converts rotary motion into linear motion. It consists of a threaded shaft (screw) and a nut that slides along the thread; the movement of the nut produces linear motion.
Elimold offers reverse engineering services and can manufacture replacement lead screw products based on parts provided by customers. If your original part does not perform well in your application, we can design a replacement part for you according to your design specifications. You will find that we are very flexible in meeting your needs.
Yes, we offer prototyping services to help you evaluate the design and fit of your custom lead screw before full-scale production. This allows you to test the component in real-world applications and make necessary adjustments.
Yes, we offer custom thread specifications, including trapezoidal threads, ACME threads, and other special threads. We can also provide various coatings, such as Teflon coatings, blackening coatings, or chrome coatings, to enhance corrosion and wear resistance.
In some very specific and special applications and needs, Elimold can use chrome plating to repair materials that require regrinding. However, in most cases, if the screw is damaged to this extent, it is usually more cost-effective to regrind it into larger balls or manufacture a new screw shaft assembly.
Elimold can provide emergency manufacturing services for its customers (at an additional cost). This means that we typically complete the manufacturing within 12 to 24 hours or less, depending on your required timeframe. We have even completed ball screw manufacturing on the same day. The best way to initiate this service is to contact us directly.
The lead time depends on the complexity and quantity of the order. However, our typical lead time for custom screws is 2 to 6 weeks. Once we understand your specific requirements, we will provide a more accurate delivery time.
To place an order, please contact our sales team and provide your specifications, including dimensions, material, thread type, and other relevant details. We will work with you to complete the design and provide a quote.
Ready To Start Your Next Custom Lead Screw Project?
Just send us your technical drawing or a description of your screw and you will shortly receive your commercial offer.
