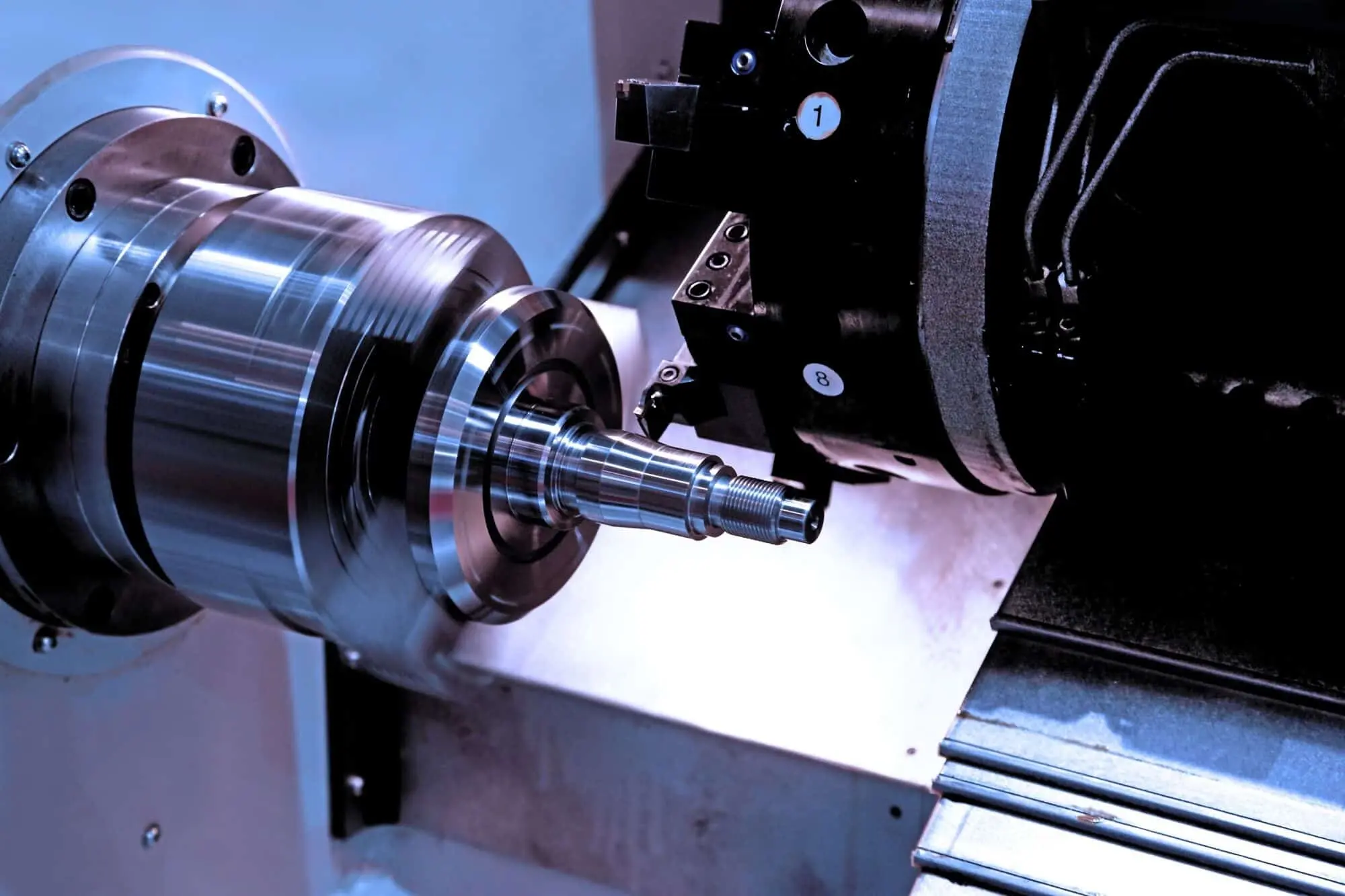

CNC Machining Shafts
As one of Elimold’s many machining products and services, CNC shaft machining encompasses shaft turning, shaft milling, drilling, keyway machining, and bar threading, and can be customized to detailed specifications. Our professional team utilizes advanced CNC bar feed lathes, Swiss bar feed turning centers, CAM programming services, and reverse engineering capabilities to manufacture custom-machined shaft parts for a wide range of applications. Contact us now for a quote.

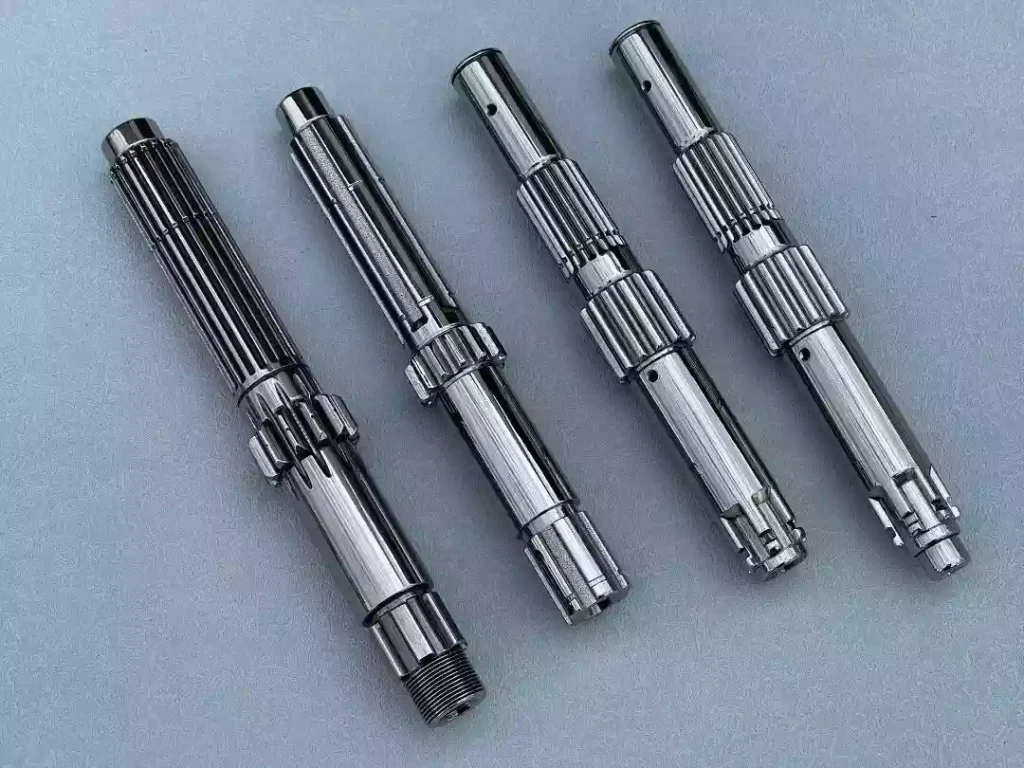

Custom CNC Machined Shafts
If your equipment relies on stable shaft components, we can provide precision custom shaft machining services to help you obtain shafts that are easier to assemble and operate more stably. We are capable of meeting the dimensional and surface requirements in drawings through processes such as turning, milling, and grinding, and support machining shaft components of various sizes from 1 inch to 3 feet. As an industry leader, Elimold employs bar stock feeding, unmanned, lean manufacturing processes, and Kaizen/5S and Six Sigma certifications to ensure our customers receive high-quality products and services produced in the most sustainable way. Contact us now for a quote.
Custom CNC Machining Shaft Factory
With 16 years of experience in CNC machining shaft products, we have successfully delivered over 14,000 custom shaft product projects for various industries including medical, aerospace, automation, and robotics. We excel at customizing shaft parts strictly according to your drawings and specifications. Elimold can manufacture your stainless steel parts based on 2D drawings and 3D models, combining milling, turning, Swiss-type lathe machining, mill-turn-turn machining, 5-axis machining, DFM auditing, process inspection, and final quality control. From multi-axis machining equipment to custom fixtures and cutting tools, Elimold’s factory is equipped with everything needed to produce high-precision shafts with tolerances as small as (+/-) 0.0002 inches.
Custom Machined Shafts
Elimold leverages decades of experience in designing and machining custom driveshafts to create custom driveshafts tailored to your specific application needs. Our rigorous ISO 9001 quality management system ensures the precise and consistent quality of your custom driveshafts. High-precision turning is our specialty; Elimold possesses a full range of DMG Mori lathes, as well as twin-spindle bar feed lathes for high-volume production, and single-spindle models for small-batch production and prototyping. We can machine your custom shafts using a variety of common and specialty steel alloys. We offer extensive secondary machining services and can design and manufacture various components.
Types of Shafts We Machine
We can manufacture various machined shafts according to your drawings, categorized by shaft geometry, mechanical function, and key features to meet your engineering requirements. Please provide drawings for DFM review to determine the scope of inspection. We will respond to your inquiry within 4 hours.
Drive Shafts
Precision universal joint assemblies designed for smooth power transmission at angles. These components support reliable rotation in robotic systems.
Spline Shafts
High torque transmission shafts featuring precision longitudinal grooves. These features provide mechanical lock accurate alignment for heavy drivetrains.
Keyed Shafts
Custom shafts machined with tight tolerance slots for secure interlock with pulleys. This design helps prevent slippage in performance motors.
Linear Motion Shafts
Induction hardened shafts paired with aluminum support rails for friction movement. They offer precision guidance for automated positioning systems.
Gear Shafts
Helical gear shafts manufactured through precision hobbing for smooth quiet operation. These parts optimized for power reduction in gearboxes.
Rotor Shafts
Multi step motor shafts featuring mirror ground surfaces for extreme concentricity. This design supports speed stability in electric motor assemblies.
Hollow Shafts
Lightweight precision shafts featuring internal bore for fluid or cable passage. Optimized for robotic assemblies and industrial weight reduction.
Pump Shafts
Precision ground shafts with superior surface finish to prevent seal wear. Optimized for reliable fluid transport and advanced chemical resistance.
Tapered Shafts
Shafts with precise conical ends to facilitate easy assembly and reliable friction fit in machinery and heavy mechanical tool holders.
Motor Shafts
Dynamic balanced shafts featuring precision step profiles and concentric features for stable electric motor operation at extreme high speeds.
Spindle Shafts
High speed spindle shafts featuring extreme geometric accuracy and mirror finish. Optimized for CNC machinery and high precision axial rotation.
Stepped Shafts
Multi step shafts featuring various diameters machined to precise tolerances for bearing and gear integration in complex mechanical drivetrain systems.
Transmission Shafts
Multi-feature shafts for power transmission with combined fits, splines, and threads.
Straight Shafts
Single-diameter shafts for direct drive, simple supports, and guide applications.
Threaded Shafts
External and internal threads, single and multi-start — for adjustment, locking, and drive screws.
One-Stop CNC Machining Solutions for All Your Custom Shaft Needs
Elimold is your one-stop service provider for custom shaft machining, handling your projects from prototyping to mass production. Our goal is always to provide customized CNC machining solutions for shafts. With strong flexibility and rapid response service, we have advanced CNC equipment and highly skilled staff, enabling us to complete almost all custom shaft projects on time and within budget. Elimold will accompany you throughout the CNC manufacturing of your custom shaft parts. No matter what type of parts you need, we can provide you with industry-reliable manufacturing capabilities or machining processes tailored to your needs.
Comprehensive Shaft Machining
Concentricity accuracy to 0.01 mm, ensuring stable rotation
We employ an integrated turning and precision grinding process to control concentricity accuracy within 0.01 mm. By ensuring the center of rotation is aligned with the axis, we help you achieve stable motion and reduce the risk of vibration during operation.
Ra 0.8 surface finish, ensuring consistent contact
We precision grind critical areas to achieve a surface finish of Ra 0.8. This process creates specific surface integrity, resulting in reliable sealing and controlled friction, which translates to less heat generation and more stable component performance.
Coordinate Measuring Machine Verification, ensuring reliable assembly
We use coordinate measuring machines (CMM) to measure each axis according to your drawings to verify that all tolerances meet your requirements. This documented precision helps your components be correctly assembled immediately upon arrival, avoiding unexpected delays or rework during production.
Fine surface texture ensures seal integrity
We have precision grinding capabilities to achieve a stable surface roughness of Ra 0.8. By removing the tiny protrusions left by CNC turning, we provide oil seals that perfectly fit the required smooth contact surface, thus preventing potential fluid leaks.
Burn-free edges ensure safe installation
Our professional deburring and polishing processes ensure a smooth and flat surface in every transition area. By eliminating sharp edges that could tear soft seals during installation, we help you ensure a leak-free installation and protect the integrity of the sealing assembly from the outset.
Controlled friction for stable operation
Our double polishing process ensures a uniform surface height across all contact areas. This consistent surface profile reduces heat buildup and unpredictable resistance, resulting in smoother mechanical movement and more stable performance of rotating components.
Urgent Machining Service for Shaft Parts
Few companies can rival Elimold in custom machining of large shaft parts. We offer not only world-class service and top-quality shaft parts typically found only in large shaft manufacturers, but also a friendly, efficient, and knowledgeable workforce rarely found in smaller businesses. All manufacturing and shaft machining work requires meticulous attention to ensure precision, so please allow Elimold’s professional and friendly team to provide a customized shaft machining quote based on your specific requirements. For urgent orders, please consult our expedited and emergency services.
Send Us Your Shaft Drawing
We’ll review it for machinability, check the tolerance requirements against our process capability, and return a detailed quote within 4 hours. No obligation at the quoting stage.
Custom CNC Machining Shaft Supplier
Elimold boasts comprehensive on-site material handling capabilities, enabling it to customize and machine various shaft components for its clients. Our factory in Shenzhen, China, is equipped with over 70 industrial-grade CNC machining machines, providing rapid custom shaft machining and fast order fulfillment services. Whether you require advanced cutting, grinding, stamping, or other services, Elimold has the corresponding machining capabilities to provide the shaft manufacturing resources you need. We also offer custom production of large, non-standard shaft components, possessing multiple sets of large-scale machining and heat treatment equipment. Our team of 10 metal materials experts ensures high-precision manufacturing and effectively extends the service life of mechanical parts.
Advanced Shaft Machining and Manufacturing Capabilities
Our shaft machining services rely on modern equipment, optimized workflows, and deep technical expertise. With CNC turning centers supporting high-speed machining and multi-axis operation, we are able to produce shafts that meet stringent tolerances and complex geometries while maintaining efficient cycle times. But the key is not just the machine itself, but how we use it. Our proprietary R&D capabilities enable us to offer value-added services beyond basic turning: such as broaching internal keyways, tapping to specifications, polishing to reduce friction, or completing complex diameter transitions in a single setup. Whether the shaft is simple or multi-functional, Elimold’s machining process revolves around custom shaft machining, ensuring precision machining at the most critical moments: shop floor, field, and under load conditions.
Shaft CNC Machining Services
CNC Turning
Swiss Machining
Spline/Gear Hobbing
Turn-Mill Machining
CNC Grinding
CNC Drilling and Boring
CNC Broaching
CNC Milling
Assembly
End-to-End CNC Machining of Shaft Components
Our services go far beyond shaft machining. We also provide support from engineering consultation during the quoting process, guidance on Design for Manufacturability (DFM), and quality inspection of every surface, thread, and tolerance. Whether you are building an OEM system or sourcing spare parts for existing equipment, the Elimold team can provide shaft solutions that can be directly integrated into your system. Our team understands how to optimize accuracy, efficiency, and reliability. Whether you are designing new parts or looking for replacements for existing systems, Elimold offers custom shaft machining capabilities and meticulous attention to detail to ensure your components operate smoothly.
Tolerance & Fit Capabilities
We specify tolerance class by feature type — not a single blanket number. Bearing journals get tighter control than non-functional diameters. That’s how precision shaft machining should work.
Feature | Standard Tolerance | Achievable |
|---|---|---|
OD — bearing journal | ±0.005 mm | ±0.002 mm |
OD — non-functional | ±0.01 mm | ±0.005 mm |
Length / step location | ±0.01 mm | ±0.005 mm |
Keyway width | JS9 / P9 fit | Custom |
Thread pitch diameter | 6g / 6H class | 4h / 4H class |
Spline — major Ø | ±0.01 mm | ±0.005 mm |
Bore concentricity | ±0.005 mm | ±0.003 mm |
Surface finish — turned | Ra 0.8 μm | Ra 0.4 μm |
Surface finish — honed | Ra 0.4 μm | Ra 0.2 μm |
“Achievable” values require dedicated setup and gauging verification. Discuss during DFM review — we will confirm feasibility before quoting.
Materials for Custom Machined Shafts
Material selection directly impacts machining strategy, burr control, and post-processing dimensional stability.
Stainless Steel
Stainless Steel 303 / 304 / 316 / 316L,Typical for precision shafts, guide shafts, and motor components requiring corrosion resistance.
Aluminum
Aluminum 6061 / 6063 / 6082 / 7075,Used for lightweight shafts, instrument components, and low-load motor shafts.
Free-Machining Steel
Free-Machining Steel 1214 / 1215,Excellent for high-volume repeat turned components, pins, and stud shafts.
Brass & Copper
H59 / H62 / C3604 / Copper and Brass for instrument shafts; Copper strictly for conductive or specialized components.
Carbon & Alloy Steel
Carbon & Alloy Steel1045, 4140, 4340, 8620,Gearbox shafts, drive shafts, high-torque transmission applications
Tool Steel
Tool Steel D2, H13, A2,High-wear die shafts, forming pins, precision punch bodies
Titanium
Titanium alloys are special materials and require review based on the specific circumstances of the project.
Engineering Plastics
Engineering Plastics (POM, Nylon, PTFE)，Plastics are suitable only for low-load, insulating, or specialized guide shaft components according to drawing review.
Exotic Alloys
We machine Inconel 625/718, Hastelloy, and duplex stainless on request. Contact us with your drawing for a specific assessment.
Surface Finishing for Shafts
Cylindrical Grinding | OD size / Ra ≤0.2 μm |
Abrasive Honing | Bore / OD Ra ≤0.2 μm |
Electropolish (EP) | UHP / semiconductor shafts |
Electroless Nickel | Wear & corrosion protection |
Hard Chrome Plating | High-wear shaft surfaces |
Black Oxide | Steel shafts — mild corrosion protection |
Passivation | Stainless steel — ASTM A967 |
Anodizing (Type II / III) | Aluminum shafts |
Zinc Plating | Carbon steel corrosion protection |
Nitrocarburizing (Tenifer) | Surface hardening for wear resistance |
Secondary Operations (In-House)
We can customize special fixtures for shafts.Long shafts deflect under cutting forces. Our standard protocol for shafts with L/D > 5:1 includes steady rest support, reduced depth-of-cut on finish passes, and in-process runout checking between operations. We don’t leave straightness to chance.
- Abrasive Honing: 5 machines — bore & OD finishing to Ra ≤0.2 μm
- 4-Axis & 5-Axis Milling: 80+ rotary/indexing tables — keyways, flats, cross-features
- Centerless Grinding: OD size control for long shafts
- Abrasive Honing: 5 machines — bore & OD finishing to Ra ≤0.2 μm
- 4-Axis & 5-Axis Milling: 80+ rotary/indexing tables — keyways, flats, cross-features
- Centerless Grinding: OD size control for long shafts
Quality Control for Precision Shaft Machining
Diameter Inspection on Fit Sections
Every fit-critical journal measured individually — h6, h7, k6 diameters verified against drawing specifications with measurement recorded per section.
Shoulder-to-Shoulder Checks
Axial distances between shoulders, retaining grooves, and thread starts verified to ensure correct bearing location and component positioning.
Keyway & Spline Verification
Keyway width, depth, and position verified. Spline tooth profile and pitch checked against drawing or standard specification.
Runout & Concentricity
Total indicator runout measured across full shaft length — confirming the shaft runs true for bearing, gear, and high-speed assembly applications.
Surface Finish Inspection
Surface roughness verified on ground journals, bearing seats, and seal surfaces — confirming the finish meets the mating component requirement.
Material Certification
Material grade confirmed against order specification. Mill certificates with heat number available for projects requiring material traceability.
Measurement Equipment Used for Shaft Inspection
Mitutoyo CMM (3-Coordinate)
Model 4078M-1211 · 400×800×200 mm, ±0.001 mm · Japan
Mitutoyo Profiling / Contour
Surface & contour measurement, Roundness & cylindricity · Japan
Mitutoyo Micrometer Set
0–25 mm range · 30 units,±0.001 mm · Japan
Rational 2D / 2.5D System
CPJ-3025 / CDP-1018 · 4 units,±0.001 mm · China
Mitutoyo Roughness Meter
Model 178-560-01DC,±0.1 nm · Japan
Vickers Hardness Tester
Post heat-treat verification,±0.5 HV
RKE CCD Auto-Sorter
RK-1500 / RK-2201 · 6 units,±0.002 mm · visual defect detection
Seiko SII XRF Analyzer
SEA1000A · RoHS substance testing,Japan · material certification
12-Step Quality Flow
- Drawing Review
- Material Confirmation
- Functional Journal ID
- Fit / Datum Review
- Machining Route Selection
- First Article Verification
- Journal Diameter Inspection
- Runout / Concentricity Review
- Thread / Groove Inspection
- Surface Review
- Final Batch Verification
- Repeat-Order Retention
Certifications
We combine international certifications with rigorous processes to ensure every CNC axis meets your standards:
- ISO 9001 and IATF 16949 Certifications: We adhere to the ISO quality system, simplifying supply chain compliance for your automotive and industrial projects.
- Test Reports: We provide complete documentation for your custom axes, including material test reports, dimensional inspections, and certificates of conformity.
- Other Certifications: Our processes comply with ISO 14001, ISO 13485, RoHS, REACH, CE, and UL standards.
How We Verify Every Shaft We Ship
Material selection directly affects machinability, surface finish quality, and wear life. We work with the full range of shaft materials and will advise on grade selection during DFM if you’re still deciding.
CMM Dimensional Verification
Mitutoyo CMM with ±0.001 mm accuracy verifies all critical shaft dimensions — OD, step locations, bore concentricity, runout, and positional tolerances of cross-features. CMM reports available for every lot.
In-Process Gauging
Critical shaft ODs are gauged every N pieces during production using air gauges and precision bore gauges. We don't wait for end-of-lot inspection to discover a drift — we catch it at the first deviated piece.
Full Documentation Package
Every shaft shipment includes: Certificate of Conformance, material test report (mill cert), full CMM dimensional report, surface finish report where specified, and plating/coating cert if applicable. All traceable to lot number.
Runout & Straightness Check
Long shafts are verified between centers for total runout. We use V-block + dial indicator for intermediate checks and CMM for final verification. Straightness is measured at minimum 5 points along shaft length for L/D > 5.
Optical & Visual Inspection
Rational 2D/2.5D optical systems verify thread pitch, spline profile, and surface feature geometry. RKE CCD automatic sorters used for high-volume lots to detect surface defects, burrs, and edge condition issues.
Material Verification
Seiko SII XRF analyzer verifies material composition and RoHS compliance. Hardness testing (Vickers) where heat treatment or surface hardening is specified. All raw material sourced with mill certificates.
Industry and Applications
Machined shaft parts are widely used in applications requiring corrosion resistance, strength, cleanliness, appearance, or repeatability of assembly. Materials, processes, and inspection methods must be selected based on the specific application environment.
Industrial Automation
Pumps, Valves and Fluid Control
Medical and Laboratory Equipment
Food and Processing Equipment
Electronics and Instruments
Energy and Industrial Equipment
FAQ
Far far away, behind the word mountains, far from the countries Vokalia and Consonantia, there live the blind texts. Separated they live in Bookmarksgrove right at the coast
Far far away, behind the word mountains, far from the countries Vokalia and Consonantia, there live the blind texts. Separated they live in Bookmarksgrove right at the coast
Far far away, behind the word mountains, far from the countries Vokalia and Consonantia, there live the blind texts. Separated they live in Bookmarksgrove right at the coast
Need a Quote for Custom CNC Shaft Parts?
Send your drawing, material, quantity, tolerance, and application requirements. We usually reply within 4 hours after reviewing your files.
